Nissan Sentra B18 (2020-2025) Service Manual: Side Oil Seal
Removal and Installation
REMOVAL
Remove front drive shafts. Refer to Removal and Installation (LH)and Removal and Installation (RH).

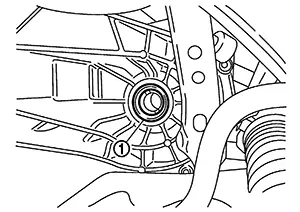

Remove
differential side oil seals (1) from clutch housing and transaxle
case using a suitable tool.
CAUTION:
Do not damage transaxle case and clutch housing.
INSTALLATION
Installation is in the reverse order of removal.
-
Install differential side oil seals (1) to clutch housing and transaxle case, using Tools.
Tool number
: KV32500QAA
Tool number
: B.vi 1666-B
(A)
: Transaxle case side
(B)
: Clutch housing side
Dimension (L1)
: 1.2 – 1.8 mm (0.047 – 0.071 in)
Dimension (L2)
: 2.7 – 3.3 mm (0.106 – 0.130 in)
CAUTION:
-
Do not incline differential side oil seal.
-
Do not damage clutch housing and transaxle case.
-
Inspection
Check the oil level and oil leaks. Refer to Inspection.
