Nissan Sentra B18 (2020-2025) Service Manual: Bose® Speaker Amp
Removal and Installation
REMOVAL

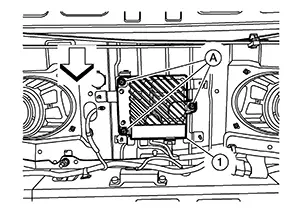

Remove
bolts (A) from Bose® speaker amp (1).
Disconnect the harness connectors from Bose® speaker amp and remove.
If necessary, remove the rear parcel shelf finisher to expose the Bose® speaker amp bracket bolts. Refer to Removal and Installation.
If
necessary, remove bolts (A) from the Bose® speaker amp bracket
(1) and remove the Bose® speaker amp bracket.
|
|
: Front |
INSTALLATION
Installation is in the reverse order of removal.
