Nissan Sentra B18 (2020-2025) Service Manual: Park/neutral Position (pnp) Switch (neutral Switch)
Removal and Installation
REMOVAL
Remove the air cleaner assembly. Refer to Removal and Installation.

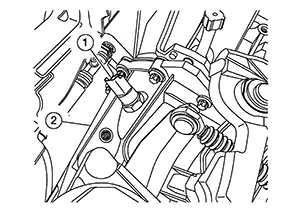

Disconnect harness connector from the park/neutral position (PNP) switch (neutral switch).
Remove
park/neutral position (PNP) switch (neutral switch) from transaxle
case.
INSTALLATION
Apply recommended sealant to threads of park/neutral position (PNP) switch (neutral switch).
-
Use Genuine Liquid Gasket, Three Bond 1215 or an equivalent. Refer to Recommended Chemical Products and Sealants.
CAUTION:
Remove old sealant and oil adhering to threads.
Install park/neutral position (PNP) switch (neutral switch) to transaxle case.
Tighten park/neutral position (PNP) switch (neutral switch) to the specified torque. Refer to Exploded View.
Installation of the remaining components is in the reverse order of removal.
Inspection
Check continuity between position switch terminals. Refer to Component Inspection (Back-up lamp switch) and Component Inspection park/neutral position (PNP) switch (neutral switch).
Check the oil leaks. Refer to Inspection.
