Nissan Sentra B18 (2020-2025) Service Manual: M/t Shift Selector

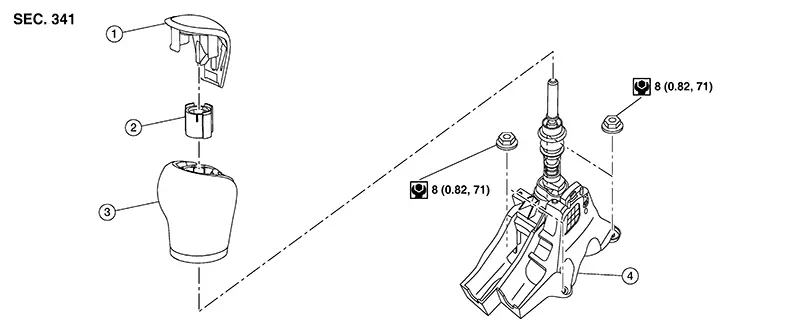

Exploded View
|
1. |
Ornament |
2. |
Retainer |
3. |
Shift lever knob |
|
4. |
M/T shift selector assembly |
Removal and Installation
REMOVAL
Remove the center console assembly. Refer to Removal and Installation.
Remove the center console support bracket. Refer to Exploded View.
Remove
bolts (A) and remove M/T shift selector.
Disconnect and remove shift cable and selector cable from M/T shift selector assembly. Refer to Exploded View.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be careful with orientation of shift lever knob.
