Nissan Sentra B18 (2020-2025) Owner's Manual: RAB system operation
For vehicles with the 7 inch meter display

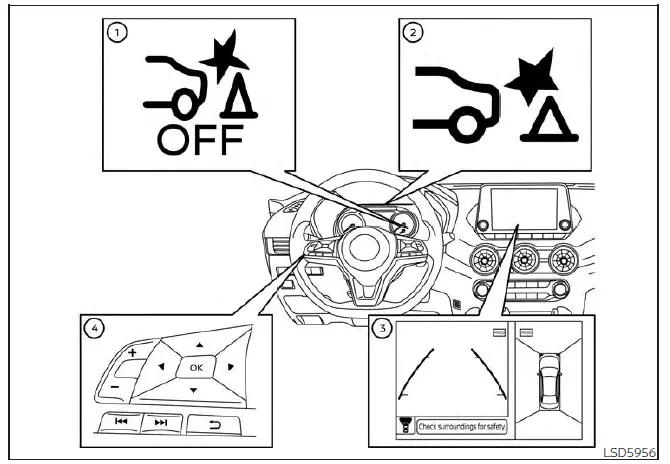

- RAB system warning light
- RAB system warning indicator
- Center display
- Steering-wheel-mounted controls (left side)
When the shift lever is placed in the R (Reverse) position and the Nissan Sentra is traveling at a speed below approximately 9 mph (15 km/h), the RAB system becomes operational.
If the system detects a potential collision risk with an obstacle while reversing, the RAB warning indicator flashes in the vehicle information display. A red frame appears on the center display (for vehicles equipped with the Intelligent Around View Monitor), and an audible chime sounds three times. The system then automatically applies the brakes. After automatic braking occurs, the driver must press and hold the brake pedal to maintain braking force.

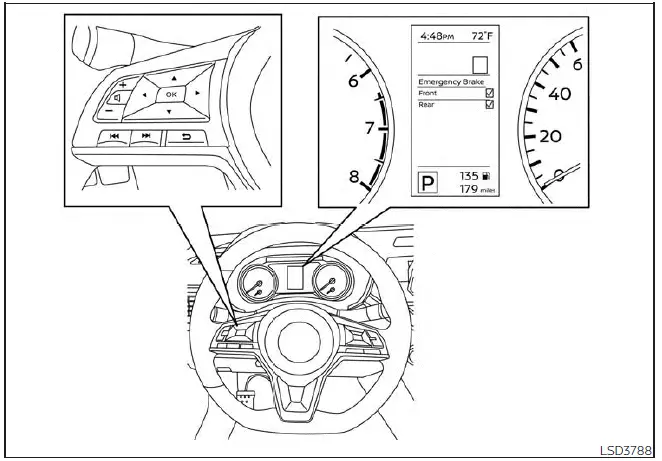

For vehicles with the 4.2 inch meter display
NOTE:
- The Nissan Sentra brake lights illuminate whenever braking is applied automatically by the RAB system.
- Audible noises may be heard during brake operation. This is normal and does not indicate a malfunction.
Turning the RAB system on/off
For vehicles with the 7 inch meter display
Follow the steps below to enable or disable the Rear Automatic Braking (RAB) system on the Nissan Sentra.

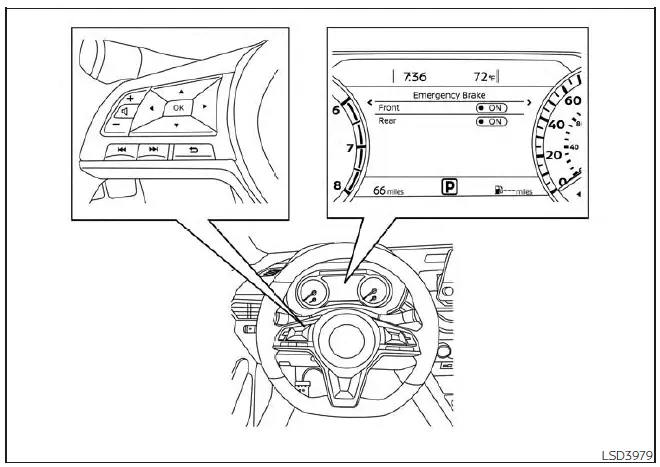

1. Press the
button until “Settings” appears in the vehicle information display.
Use the
button to select “Driver Assistance,” then press the OK button.
2. Select “Emergency Brake” and press the OK button.
3. Select “Rear” and press the OK button to turn the RAB system ON or OFF.
When the RAB system is switched off, the RAB system warning light remains illuminated.
NOTE:
The Rear Automatic Braking (RAB) system on the Nissan Sentra is automatically reactivated whenever the engine is restarted.
For vehicles with the 4.2 inch meter display
Rear Automatic Braking (RAB)
WARNING
Failure to observe all warnings and instructions for the proper use of the
Rear Automatic Braking (RAB) system may result in serious injury or death.
The RAB system on the Nissan Sentra ...
RAB system limitations
WARNING
The following list outlines the operational limitations of the Rear Automatic
Braking (RAB) system. Failure to comply with these warnings and usage instructions
may result in serious inju ...
