Nissan Sentra B18 (2020-2025) Service Manual: Rear Combination Lamp (body Side)

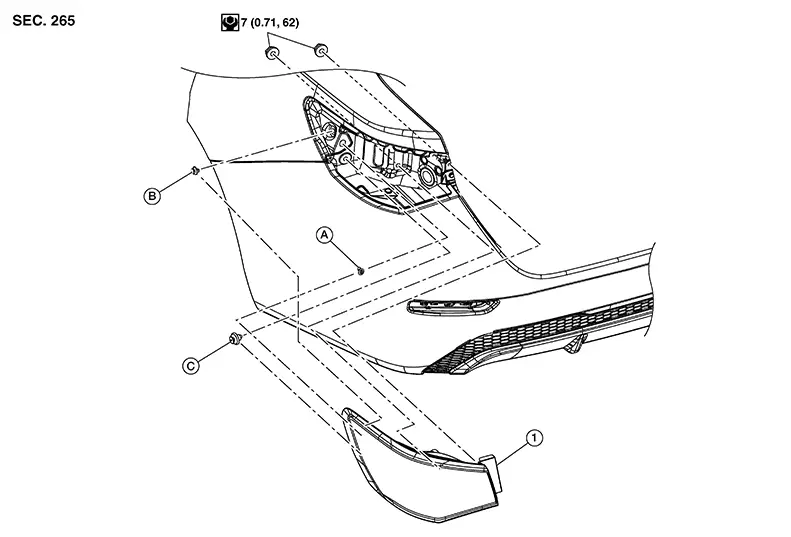

Exploded View
|
1. |
Rear combination lamp |
A. |
Grommet |
B. |
Clip |
|
C. |
Grommet |
Removal and Installation
Removal
Partially remove trunk side finisher. Refer to Removal and Installation.
Remove the rear combination lamp nuts.
Disconnect the harness connector from the rear combination lamp.
Pull the rear combination lamp rearward and remove.
INSTALLATION
Installation is in the reverse order of removal.
Bulb Replacement
Warning:
Do not touch bulb with bare hand while it is lit or right after being turned off. Burning may result.
CAUTION:
-
Do not touch glass surface of bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.
-
Do not leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect performance of lamp. When replacing bulb, be sure to replace it with new one.
REAR TURN SIGNAL LAMP BULB
Removal
Remove the rear combination lamp. Refer to Removal and Installation.
Rotate the rear turn signal lamp bulb socket counterclockwise and remove.
Remove the rear turn signal lamp bulb from bulb socket.
Installation
Installation is in the reverse order of removal.
CAUTION:
After installing, be sure to install the bulb socket securely to ensure watertightness.
STOP/TAIL LAMP
Removal
Remove the rear combination lamp. Refer to Removal and Installation.
Rotate the stop/tail lamp bulb socket counterclockwise and remove.
Remove the stop/tail lamp bulb from bulb socket.
Installation
Installation is in the reverse order of removal.
CAUTION:
After installing, be sure to install the bulb socket securely to ensure watertightness.
License Plate Lamp
Exploded View
Exploded View
1.
License plate
lamp
...
Rear Combination Lamp (trunk Lid Side)
Exploded View
Exploded View
1.
Trunk lid
2.
...
