Nissan Sentra B18 (2020-2025) Service Manual: License Plate Lamp

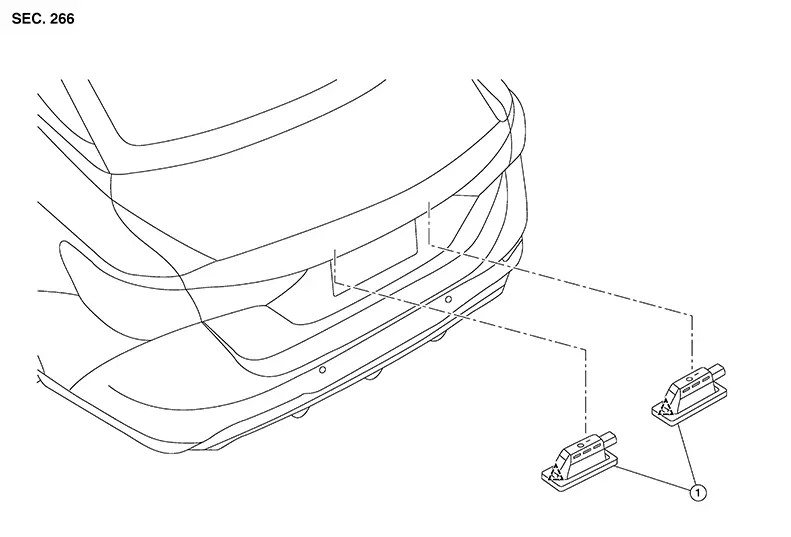

Exploded View
|
1. |
License plate lamp |
|
Clip |
Removal and Installation
REMOVAL
Release the clip and remove the license plate lamp from the trunk lid.
Disconnect the harness connector from the license plate lamp and remove the license plate lamp.
INSTALLATION
Installation is in the reverse order of removal.
Bulb Replacement
The license plate lamp bulb is serviced as an assembly to the license plate lamp. Refer to Removal and Installation.
High-Mounted Stop Lamp
Exploded View
Exploded View
1.
High-mounted stop
lamp
...
Rear Combination Lamp (body Side)
Exploded View
Exploded View
1.
Rear combination lamp
...
