Nissan Sentra B18 (2020-2025) Service Manual: High-Mounted Stop Lamp

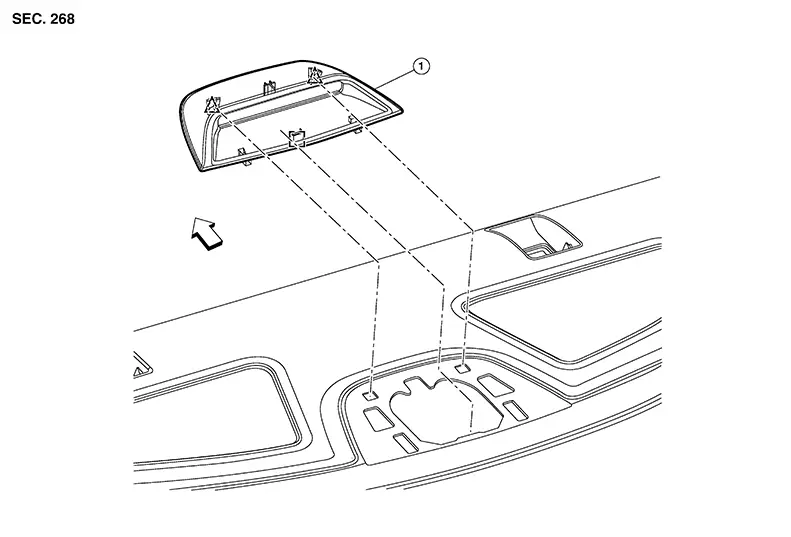

Exploded View
|
1. |
High-mounted stop lamp |
|
Clip |
|
Metal clip |
|
|
Front |
Removal and Installation
HIGH-MOUNTED STOP LAMP
Removal
Slide
high-mounted stop lamp (1) rearward on parcel shelf to provide
clearance for front tabs (A).
Lift front of lamp assembly up and pull forward to provide clearance for rear tabs (B).
Disconnect the harness connector from the high-mounted stop lamp and remove.
Installation
Installation is in the reverse order of removal.
Bulb Replacement
HIGH-MOUNTED STOP LAMP
The high-mounted stop lamp bulb is LED and is serviced as an assembly to the high-mounted stop lamp. Refer to Removal and Installation.
Door Mirror Turn Signal Lamp
Exploded View
Exploded View
1.
Door mirror assembly
...
License Plate Lamp
Exploded View
Exploded View
1.
License plate
lamp
...
