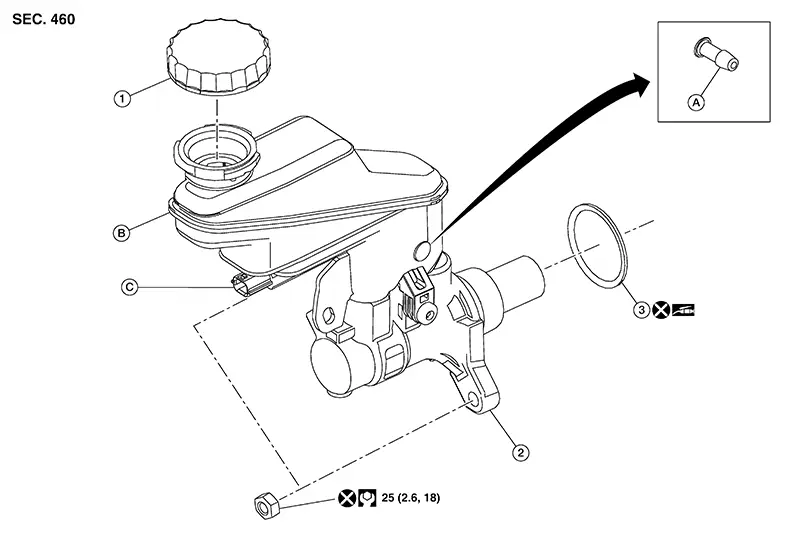

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Reservoir cap |
2. |
Master cylinder assembly |
3. |
O-ring |
|
A. |
Port for reservoir hose to clutch master cylinder (if equipped). Refer to Exploded View. |
B. |
Master cylinder reservoir tank |
C. |
Brake fluid level switch |
|
|
PBC (Poly Butyl Cuprysil) grease or silicone-based grease |
Removal and Installation
Removal and Installation
CAUTION:
Do not spill or splash brake fluid on painted
surfaces. Brake fluid may seriously damage paint. Wipe it off
immediately a ...
