Nissan Sentra B18 (2020-2025) Service Manual: System
System Description
SYSTEM DIAGRAM

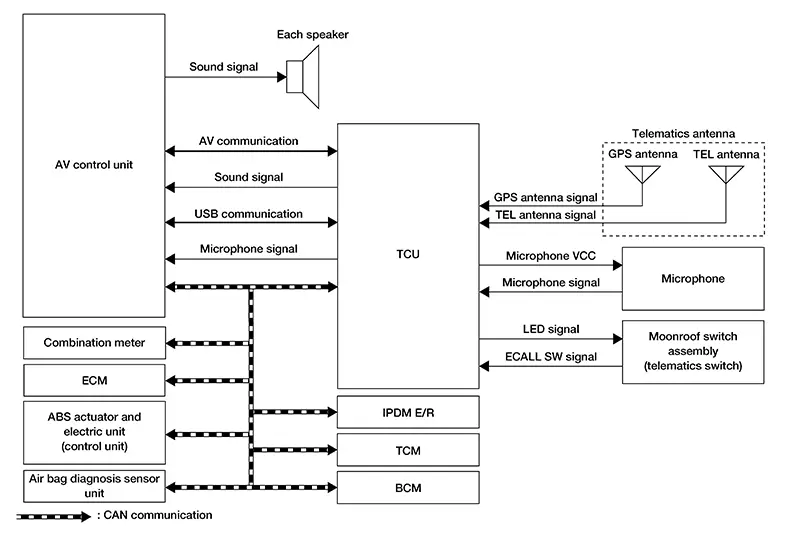

Display Audio System - Without Bose Audio System With 8” Color Display

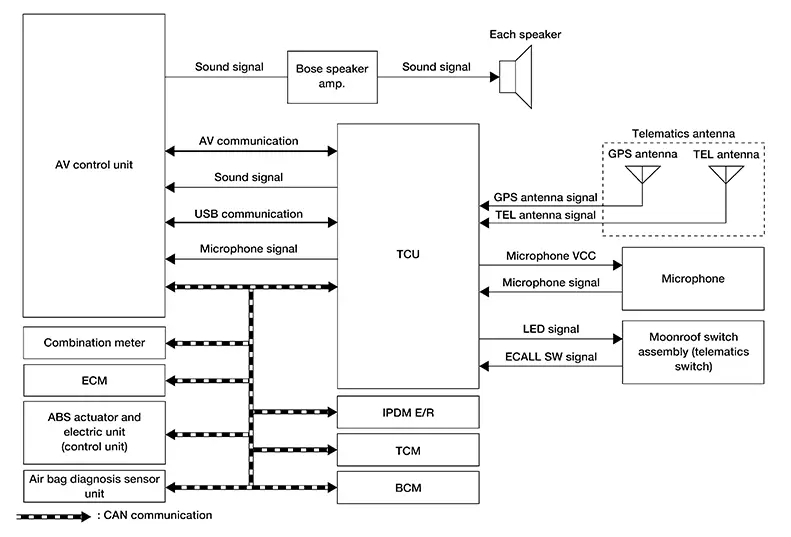

Display Audio System - With Bose Audio System With 8”
Color
Display
TCU Input Signal (CAN Communication)
| Transmit unit | Signal name |
|---|---|
|
Air bag diagnosis sensor unit |
Air bag crash order signal |
|
ABS actuator and electrical unit (control unit) |
ABS malfunction signal |
|
BCM |
Door switches state signal |
|
Combination meter |
|
|
ECM |
|
|
IPDM E/R |
Anti-theft horn status signal |
|
TCM |
Transmission range indication signal |
DESCRIPTION
-
The Telematics system is a system for providing information by connecting the Nissan Sentra vehicle and the user to the NissanConnect center.
-
Telematics Communication Unit (TCU) equipped with a radio communication terminal communicates with the information center (NissanConnect center) via radio waves for receiving NissanConnect services.
-
With the equipment of the radio communication terminal, TCU communicates with NissanConnect center by Packet communication*1 and SMS*2 via TEL antenna.
Note:
-
*1: Packet communication means a communication method that data is broken down into smaller chunks for communication. The split data is called a packet and improves the efficiency of the communication circuit.
-
*2: SMS stands for Short Message Service, also known as text messaging or short mail, and provides text-based message communication services.
-
-
While communicating with the operator, data (e.g. transmission of own Nissan Sentra vehicle location) is transmitted to the NissanConnect Service Center by using DTMF tone signals and SMS via the radio communication module included in TCU.
-
Audio signals transmitted and received while communicating with the operator are input by microphone connected to TCU.
-
Audio signals are output from TCU via the audio data circuit connected to the AV control unit.
Component Parts
Telematics System
Component Parts Location
Component Parts
Location
No.
Component
...
Diagnosis System (ivc)
Consult Function
CONSULT Function
CONSULT FUNCTIONS
CONSULT performs the following functions via
communication with the TCU.
Direct ...
