Nissan Sentra Service Manual: Wiring diagram

CVT Control system

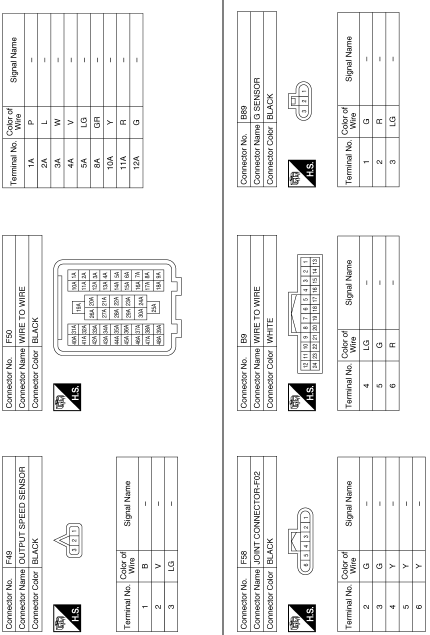

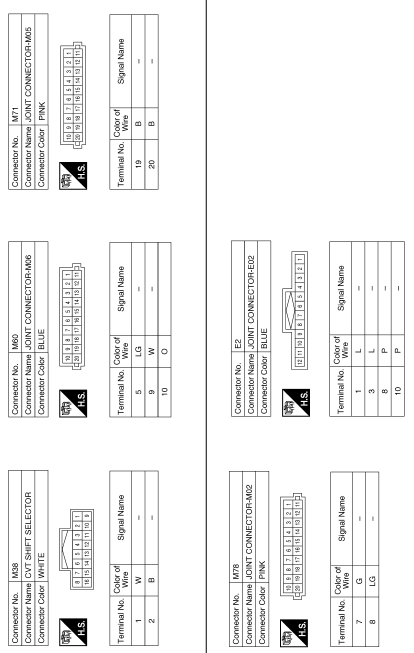

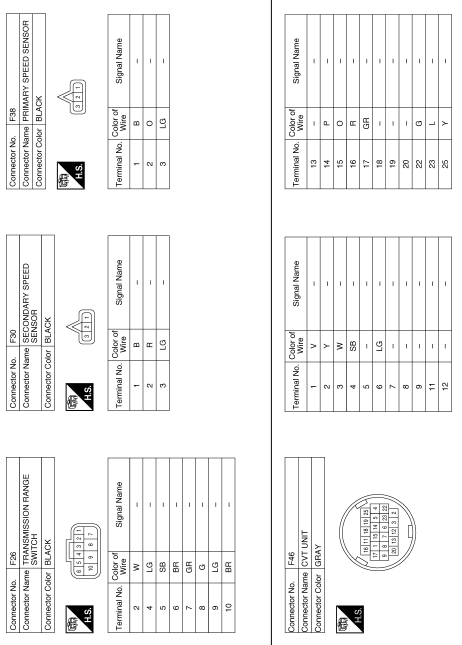

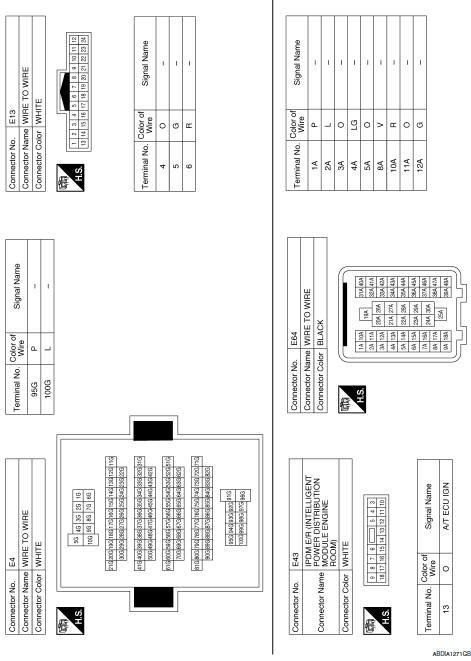

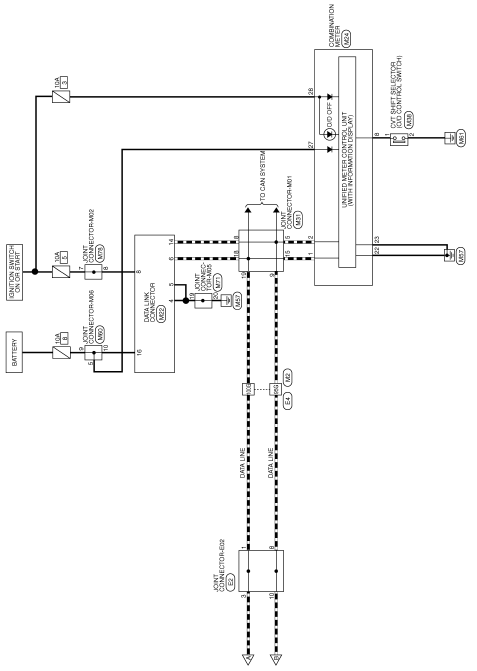

Wiring Diagram








CVT Shift lock system


CVT Shift lock system

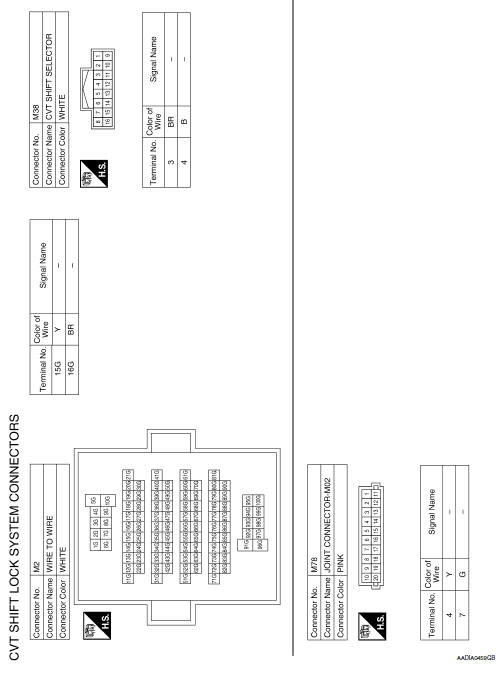

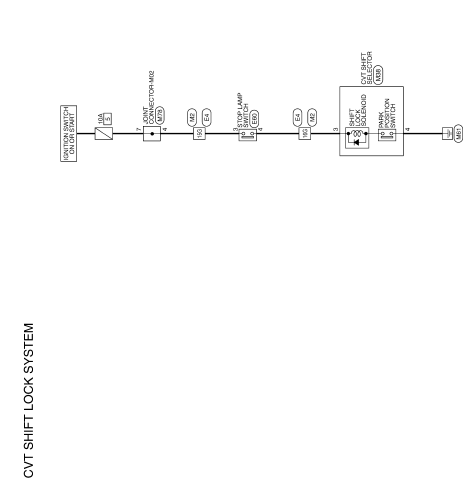

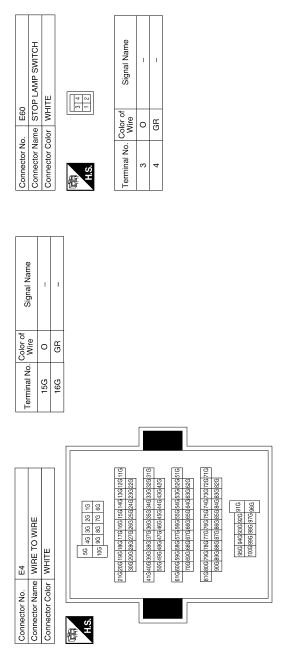

Wiring Diagram



Basic inspection


ECU diagnosis information
TCM Reference Value CONSULT DATA MONITOR STANDARD VALUE NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this veh ...

Basic inspection
DIAGNOSIS AND REPAIR WORK FLOW Work Flow NOTE: “DTC” includes DTC at the 1st trip. 1.OBTAIN INFORMATION ABOUT SYMPTOM Refer to TM-140, "Diagnostic Work Sheet" and interview t ...

Other materials:

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system ...

Parking brake switch signal circuit
Component function check 1.Check parking brake switch operation Check that brake warning lamp in combination meter turns on/off when parking brake is actuated. Is the inspection result normal? Yes >> inspection end. No >> proceed to diagnosis procedure. Refer to mwi-60, " ...

Can communication circuit
Diagnosis procedure 1.CONNECTOR INSPECTION Turn the ignition switch OFF. Disconnect the battery cable from the negative terminal. Disconnect all the unit connectors on CAN communication system. Check terminals and connectors for damage, bend and loose connection. Is the inspection resu ...
