Nissan Sentra B18 (2020-2025) Service Manual: Rear Combination Lamp (body Side)

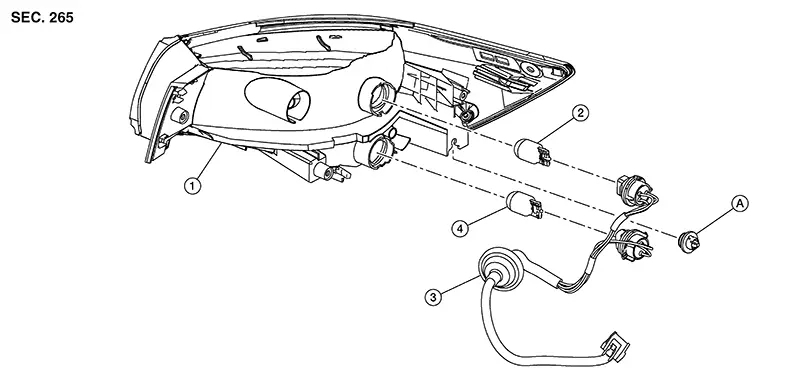

Exploded View
|
1. |
Rear combination lamp |
2. |
Stop/tail lamp bulb |
3. |
Rear combination lamp harness connector |
|
4. |
Turn signal lamp bulb |
A. |
Grommet |
Disassembly and Assembly
DISASSEMBLY
Warning:
Do not touch bulb while it is lit or right after being turned off. Burning may result.
CAUTION:
-
Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.
-
Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc. may affect the performance of the lamp.
Remove rear combination lamp. Refer to Removal and Installation.
Rotate rear turn signal lamp bulb socket counterclockwise to remove from rear combination lamp.
Remove the rear turn signal lamp bulb from bulb socket.
Rotate stop/tail lamp bulb socket counterclockwise to remove from rear combination lamp.
Remove the stop/tail lamp bulb from bulb socket.
If necessary, compress grommet as
shown and slide down to remove.
ASSEMBLY
Assembly is in the reverse order of disassembly.
CAUTION:
After installing, be sure to install the bulb sockets securely to ensure watertightness.
