Nissan Sentra B18 (2020-2025) Service Manual: Rear Combination Lamp (trunk Lid Side)

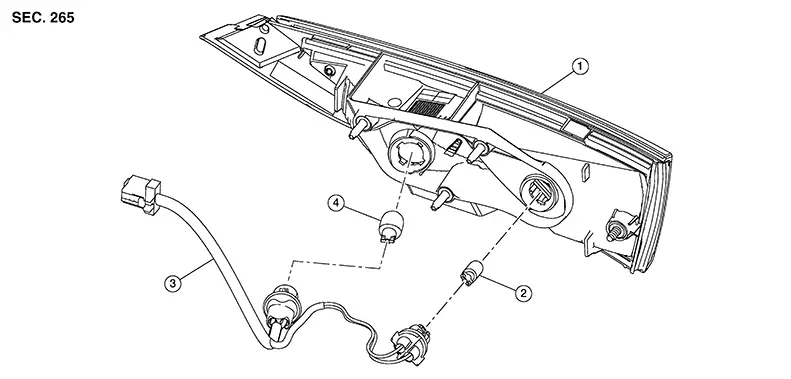

Exploded View
|
1. |
Rear combination lamp (trunk lid side) |
2. |
Tail lamp bulb |
3. |
Rear combination lamp (trunk lid side) harness |
|
4. |
Back-up lamp bulb |
Disassembly and Assembly
DISASSEMBLY
Warning:
Do not touch bulb while it is lit or right after being turned off. Burning may result.
CAUTION:
-
Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.
-
Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc. may affect the performance of the lamp.
Remove rear combination lamp (trunk lid side). Refer to Removal and Installation.
Rotate back—up lamp bulb socket counterclockwise to remove from rear combination lamp (trunk lid side).
Remove the back—up lamp bulb from bulb socket.
Rotate tail lamp bulb socket counterclockwise to remove from rear combination lamp (trunk lid side).
Remove the tail lamp bulb from bulb socket.
ASSEMBLY
Assembly is in the reverse order of disassembly.
