Nissan Sentra B18 (2020-2025) Service Manual: Front Combination Lamp

Nissan Sentra B18 (2020-2025) Service Manual / Driver Controls / Exterior Lighting System :: Halogen Headlamp / Unit Disassembly and Assembly / Front Combination Lamp

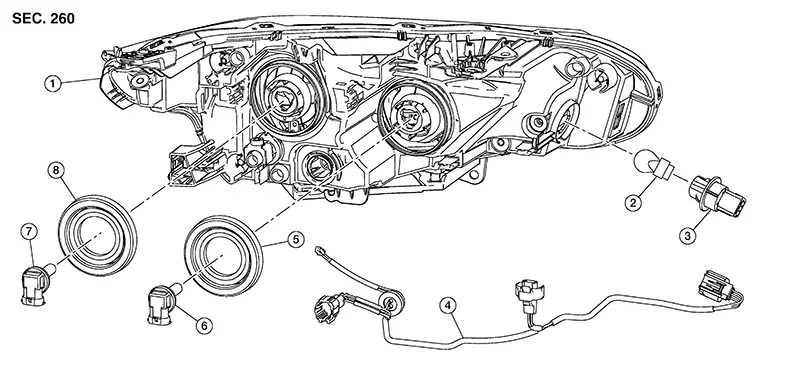

Exploded View

Exploded View

1.	Front combination lamp	2.	Turn/parking lamp bulb	3.	Turn/park lamp bulb socket
4.	Combination lamp harness	5.	Socket cover	6.	Headlamp (high beam)/daytime running lamp bulb
7.	Headlamp (low beam) lamp bulb	8.	Socket cover

Disassembly and Assembly

Disassembly and Assembly

DISSASSEMBLY

Warning:

Do not touch bulb while it is lit or right after being turned off. Burning may result.

CAUTION:

Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to bulb.

Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc. may affect the performance of the lamp.

Remove front combination lamp. Refer to Removal and Installation.

Rotate the headlamp (low beam) lamp bulb counterclockwise and remove.

Disconnect the harness connector from the headlamp (low beam) lamp bulb and remove.

Rotate the headlamp (high beam)/daytime running lamp bulb counterclockwise and remove.

Disconnect the harness connector from the headlamp (high beam)/daytime running lamp bulb and remove.

Rotate the turn/park lamp bulb socket counterclockwise and remove.

Remove the turn/parkl lamp bulb from the turn/park lamp bulb socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

After installing, be sure to install the bulb sockets securely to ensure watertightness.
