Nissan Sentra B18 (2020-2025) Service Manual: Handling Precautions for Plastics
Precautions for Plastics
|
Abbreviation |
Material name |
Heat resisting temperature °C (°F) |
Resistance to gasoline and solvents |
Other cautions |
|---|---|---|---|---|
|
PE |
Polyethylene |
60 (140) |
Gasoline and most solvents are harmless if applied for a very short time (wipe out quickly). |
Flammable |
|
EPM |
Ethylene Propylene Copolymer |
80 (176) |
↑ |
Flammable |
|
EPDM |
Ethylene Propylene Diene Copolymer |
80 (176) |
↑ |
Flammable |
|
PVC |
Poly Vinyl Chloride |
80 (176) |
↑ |
Poisonous gas is emitted when burned. |
|
TPE |
Thermoplastic Elastomer |
80 (176) |
↑ |
Flammable |
|
TPO |
Thermoplastic Olefine |
80 (176) |
↑ |
Flammable |
|
TPR |
Thermoplastic Rubber |
80 (176) |
↑ |
Flammable |
|
PP |
Polypropylene |
90 (194) |
↑ |
Flammable, avoid battery acid. |
|
PS |
Polystyrene |
80 (176) |
Avoid solvents. |
Flammable |
|
ABS |
Acrylonitrile Butadiene Styrene |
80 (176) |
Avoid gasoline and solvents. |
— |
|
AES |
Acrylonitrile Ethylene Styrene |
80 (176) |
↑ |
— |
|
AAS |
Acrylonitrile Acrylic Styrene |
85 (185) |
↑ |
— |
|
PMMA |
Poly Methyl Methacrylate |
85 (185) |
↑ |
— |
|
EVAC |
Ethylene Vinyl Acetate |
90 (194) |
↑ |
— |
|
PUR |
Polyurethane |
90 (194) |
↑ |
— |
|
UP |
Unsaturated Polyester |
90 (194) |
↑ |
Flammable |
|
ASA |
Acrylonitrile Styrene Acrylate |
100 (212) |
↑ |
Flammable |
|
PPE |
Poly Phenylene Ether |
110 (230) |
↑ |
— |
|
TPU |
Thermoplastic Urethane |
110 (230) |
↑ |
— |
|
PBT + PC |
Poly Butylene Terephthalate + Polycarbonate |
120 (248) |
↑ |
Flammable |
|
PC |
Polycarbonate |
120 (248) |
↑ |
— |
|
POM |
Poly Oxymethylene |
120 (248) |
↑ |
Avoid battery acid. |
|
PA |
Polyamide |
140 (284) |
↑ |
Avoid immersing in water. |
|
PBT |
Poly Butylene Terephthalate |
140 (284) |
↑ |
— |
|
PAR |
Polyarylate |
180 (356) |
↑ |
— |
|
PET |
Polyethylene Terephthalate |
180 (356) |
↑ |
— |
|
PEI |
Polyetherimide |
200 (392) |
↑ |
— |
CAUTION:
-
When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.
-
Plastic parts should be repaired and painted using methods suiting the materials, characteristics.

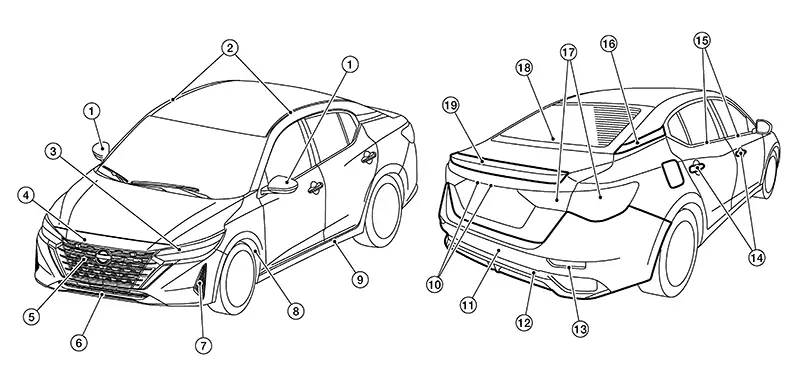

LOCATION OF PLASTIC PARTS
|
Item |
Component |
Abbreviation |
Material |
|
|---|---|---|---|---|
|
1. |
Door mirror |
Base |
PA |
Polyamide (Nylon) |
|
Housing |
ABS |
Acrylonitrile Butadiene Styrene |
||
|
2.. |
Roof side molding |
PVC |
Poly Vinyl Chloride |
|
|
3. |
Front combination lamp |
Lens |
PC |
Polycarbonate |
|
Housing |
PP |
Polypropylene |
||
|
4. |
Front bumper fascia |
PP + EPM |
Polypropylene + Ethylene Propylene copolymer |
|
|
5. |
Front grille |
Grille |
ABS |
Acrylonitrile Butadiene Styrene |
|
Molding |
||||
|
6. |
Front bumper grille |
PP + EPM |
Polypropylene + Ethylene Propylene copolymer |
|
|
7. |
Front bumper finisher |
Without fog lamp |
PP |
Polypropylene |
|
With fog lamp |
ASA |
Acrylonitrile Styrene Acrylate |
||
|
8. |
Fender protector |
PP |
Polypropylene |
|
|
9. |
Sill Cover |
TPO |
Thermoplastic Olefine |
|
|
10. |
License plate lamp |
Lens |
PC |
Polycarbonate |
|
Housing |
PA + Glass Fiber |
Polyamide (Nylon) + Glass Fiber |
||
|
11. |
Rear bumper fascia |
PP + EPM |
Polypropylene + Ethylene Propylene copolymer |
|
|
12. |
Rear bumper finisher |
PP + EPM |
Polypropylene + Ethylene Propylene copolymer |
|
|
13. |
Rear reflex reflector |
Lens |
PC |
Polycarbonate |
|
Housing |
ABS |
Acrylonitrile Butadiene Styrene |
||
| 14. | Door outside handle |
Grip |
PC + PET | Polycarbonate + Polyester |
|
Escutcheon |
||||
|
15. |
Door outside molding |
PVC |
Poly Vinyl Chloride |
|
|
16. |
Rear fender cover |
PMMA |
Poly Methyl Methacrylate |
|
|
17. |
Rear combination lamp (body side and trunk lid side) |
Lens |
PMMA |
Poly Methyl Methacrylate |
|
Housing |
PC + ABS |
Polycarbonate + Acrylonitrile Butadiene Styrene |
||
|
18. |
High mounted stop lamp |
Lens |
PC |
Polycarbonate |
|
Housing |
PP |
Polypropylene |
||
|
19 |
Rear spoiler |
ABS |
Acrylonitrile Butadiene Styrene |
|
|

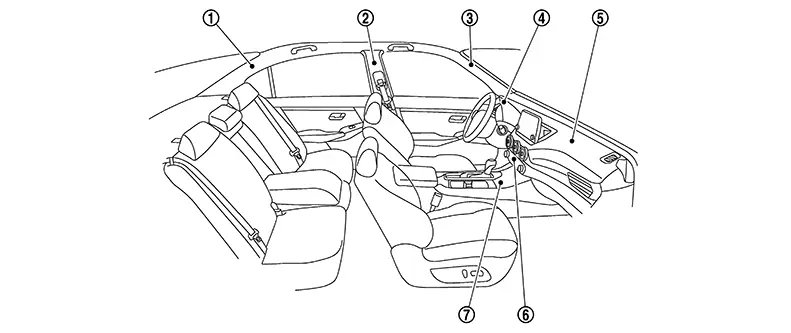

Item |
Component |
Abbreviation |
Material |
|
|---|---|---|---|---|
|
1. |
Rear pillar finisher |
PP |
Polypropylene |
|
|
2. |
Center pillar upper finisher |
PP |
Polypropylene |
|
| 3. | Front pillar finisher | PP | Polypropylene | |
| 4. | Cluster lid A | PP | Polypropylene | |
|
5. |
Instrument panel |
Skin |
TPO |
Thermoplastic Olefine |
|
Body |
PP |
Polypropylene |
||
|
6. |
A/C control |
PP |
Polypropylene |
|
|
7. |
Center console |
PP + EPDM |
Ethylene Propylene (Diene) copolymer |
|
