Nissan Sentra B18 (2020-2025) Service Manual: Hazard Switch

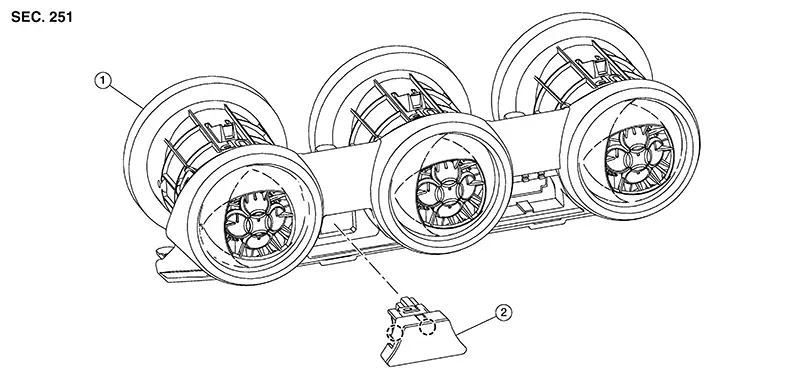

Exploded View
|
1. |
Center ventilator grill |
2. |
Hazard switch |
|
Pawl |
Removal and Installation
REMOVAL
Remove center ventilator grille (1). Refer to Removal and Installation.
Release
pawls and remove hazard switch (2).
|
|
: Pawl |
INSTALLATION
Installation is in the reverse order of removal.
