Nissan Sentra B18 (2020-2025) Service Manual: Combination Switch

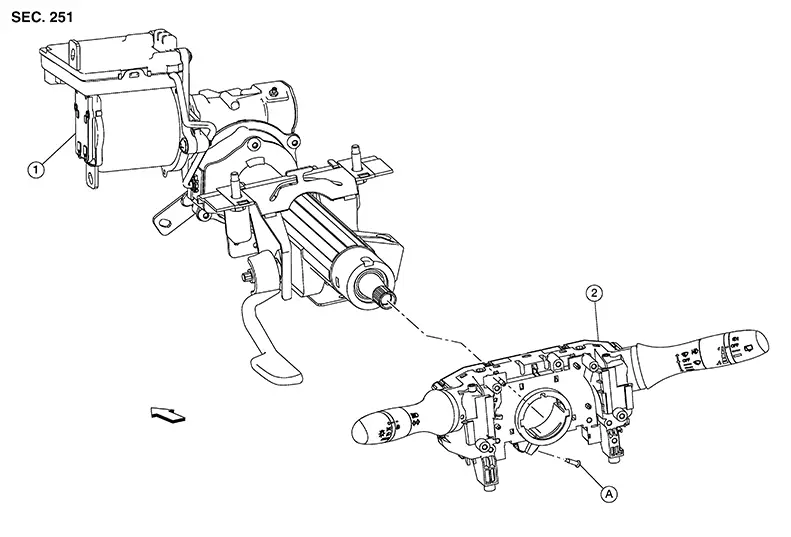

Exploded View
|
1. |
Steering column assembly |
2. |
Combination switch |
A. |
Screw |
|
|
Front |
Shown with the steering wheel removed for clarity only.
Removal and Installation
REMOVAL
CAUTION:
-
Do not use air or electric tools when removing or installing the combination switch.
Remove the spiral cable. Refer to Removal and Installation.
Disconnect the harness connector from the combination switch.
Remove the screw from the combination switch and remove the combination switch.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
After the work is completed, make sure no system malfunction is detected by air bag warning lamp.
-
In case a malfunction is detected by the air bag warning lamp, reset with the self-diagnosis function and delete the memory with CONSULT.
-
If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunctions. Refer to Special Repair Requirement.
