Nissan Sentra B18 (2020-2025) Service Manual: Rear Combination Lamp (trunk Lid Side)

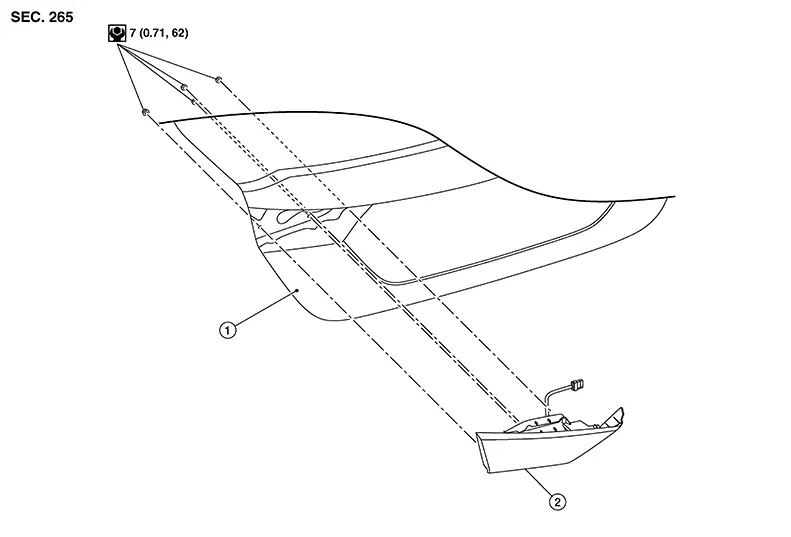

Exploded View
|
1. |
Trunk lid |
2. |
Rear combination lamp (trunk lid side) |
Removal and Installation
REMOVAL
Partially remove trunk lid trim. Refer to Removal and Installation.
Remove rear combination lamp (trunk lid side) nuts then remove rear combination lamp (trunk lid side).
INSTALLATION
Installation is in the reverse order of removal.
Rear Combination Lamp (body Side)
Exploded View
Exploded View
1.
Rear combination lamp
...
Combination Switch
Exploded View
Exploded View
1.
Steering column assembly
...
