Nissan Sentra B18 (2020-2025) Service Manual: Front Foot Duct
Removal and Installation
FRONT FOOT DUCT LH
Removal
Remove left knee air bag module. Refer to Removal and Installation.
Remove instrument finisher C. Refer to Removal and Installation.

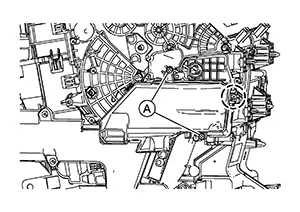

Remove
screws (A).
|
|
: Pawl |
Using a suitable tool, release pawl and remove front foot duct LH.
Installation
Installation is in the reverse order of removal.
FRONT FOOT DUCT RH
Removal
Remove the heating and cooling unit assembly. Refer to Removal and Installation.
Remove
screws (A) and release harness retainer (B).
|
|
: Pawl |
Using a suitable tool, release pawl and remove front foot duct RH.
Installation
Installation is in the reverse order of removal.
