Nissan Sentra B18 (2020-2025) Service Manual: Rear Floor Duct
Removal and Installation - Rear Floor Connecting Duct
REMOVAL
Remove center console side finisher (LH/RH). Refer to Exploded View.
Using
suitable tool, release pawls and remove rear floor connecting duct
(LH/RH).
|
|
: Pawl |
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation - Rear Floor Duct
REMOVAL
Remove rear floor nozzle. Refer to Removal and Installation — Rear Floor Duct Nozzle.
Remove rear floor duct.
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation - Rear Floor Duct Nozzle
REMOVAL
Remove front seat assembly. Refer to Removal and Installation — Seat Assembly (Driver Side) or Removal and Installation — Seat Assembly (Passenger Side).
Remove floor trim. Refer to Removal and Assembly.
Remove front floor spacer (LH/RH). Refer to Exploded View.
Remove rear foot duct (LH/RH).
INSTALLATION
Installation is in the reverse order of removal.

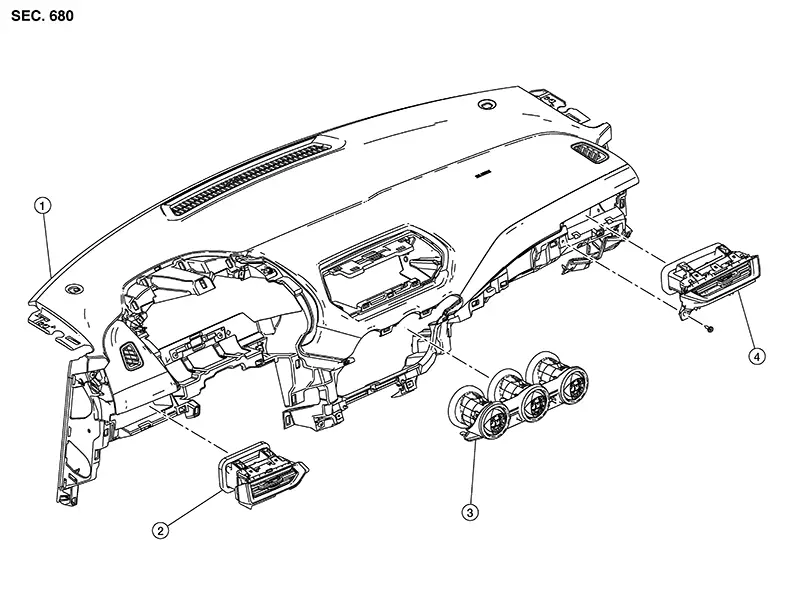

Exploded View
|
1. |
Instrument panel assembly |
2. |
Side ventilator grille (LH) |
3. |
Center ventilator grille |
|
4. |
Side ventilator grille (RH) |
Front Foot Duct
Removal and Installation
Removal and Installation
FRONT FOOT DUCT LH
Removal
Remove left
knee air bag module. Refer to Removal and Installation.
Remove
instrument finisher C. Ref ...
Center Ventilator Grille
Removal and Installation
Removal and Installation
REMOVAL
Remove
instrument finisher B. Refer to Removal and Installation.
Using a
suitable tool, release center ventilator grille p ...
