Nissan Sentra B18 (2020-2025) Service Manual: Center Ventilator Grille
Removal and Installation
REMOVAL
Remove instrument finisher B. Refer to Removal and Installation.

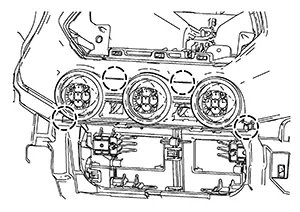

Using a
suitable tool, release center ventilator grille pawls.
|
|
: Pawl |
Disconnect harness connectors from center ventilator grille and remove center ventilator grille.
Remove hazard switch and passenger air bag off indicator from center ventilator grille (if necessary).
INSTALLATION
Installation is in the reverse order of removal.
