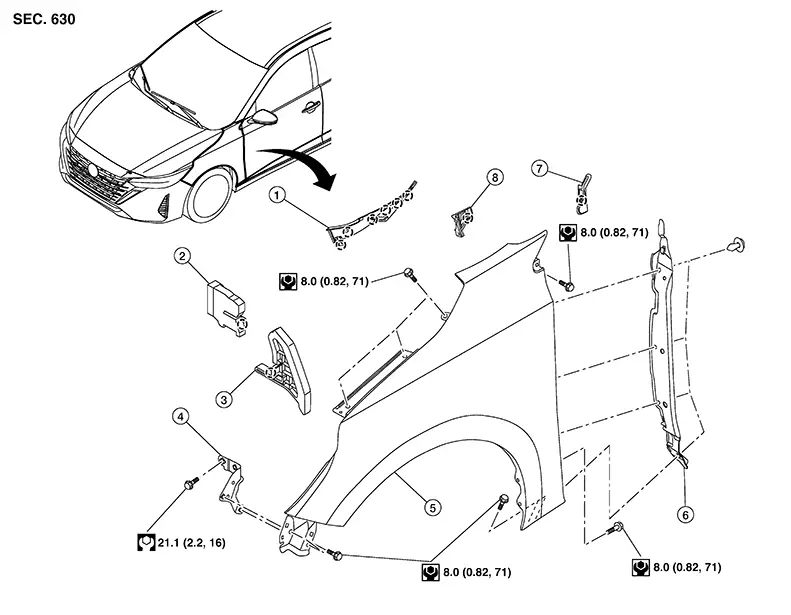

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Cowl top side trim cover |
2. |
Front fender baffle A |
3. |
Front fender upper insulator |
|
4. |
Front fender front bracket |
5. |
Front fender |
6. |
Front fender baffle B |
|
7. |
Front fender side trim cover |
8. |
Front fender upper spacer |
|
Pawl |
Front Fender
...
Removal and Installation
Removal and Installation
CAUTION:
Use a shop cloth to protect the body from being
damaged during removal and installation.
REMOVAL
Remove the
front door. Refer to Removal ...
