Work Flow (Without 165-DSS-5000P)

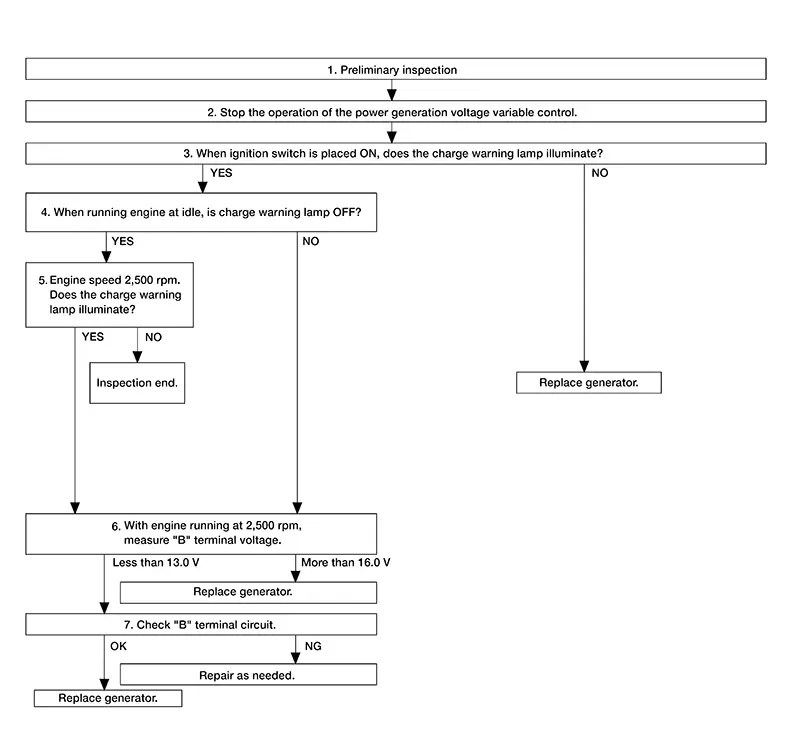

OVERALL SEQUENCE

Before performing a generator test, make sure that the battery is fully charged. A 30-volt voltmeter and suitable test probes are necessary for the test.

• Before starting, inspect the fusible link.

• Use fully charged battery.

DETAILED FLOW

1. PRELIMINARY INSPECTION

   1. Perform the preliminary inspection. Refer to Diagnosis Procedure.

   >>

   GO TO 2.

2. STOP POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

   1. CONSULT

      Stop the operation of the power generation voltage variable control in either of the following procedures:

      • After selecting “ENGINE”, set the DUTY value of “ALTERNATOR DUTY” to 0 % by selecting “ALTERNATOR DUTY” with “Active Test”. Continue “Active Test” until the end of inspection. (When the DUTY value is 0 or 100 %, the normal power generation is performed according to the characteristic of the IC regulator of the generator.)

      • Ignition switch OFF, and disconnect the battery current sensor connector. [However, DTC (P1550 - P1554) of the engine might remain. After finishing the inspection, connect the battery current sensor connector and erase the self-diagnostic results history of the engine.]

   >>

   GO TO 3.

3. INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

   1. When ignition switch is placed ON.

   Does the charge warning lamp illuminate?

   YES>>

   GO TO 4.

   NO>>

   Replace the generator. Refer to Removal and Installation.

4. INSPECTION WITH CHARGE WARNING LAMP (IDLING)

   1. Start the engine and run it at idle.

   Does the charge warning lamp turn OFF?

   YES>>

   GO TO 5.

   NO>>

   GO TO 6.

5. INSPECTION WITH CHARGE WARNING LAMP (ENGINE AT 2,500 RPM)

   1. Increase and maintain the engine speed at 2,500 rpm.

   Does the charge warning lamp illuminate?

   YES>>

   GO TO 6.

   NO>>

   Inspection End.

6. MEASURE “B” TERMINAL VOLTAGE

   1. Start engine. With engine running at 2,500 rpm, measure “B” terminal voltage.

   What voltage does the measurement result show?

   Less than 13.0 V>>

   GO TO 7.

   More than 16.0 V>>

   Replace the generator. Refer to Removal and Installation.

7. “B” TERMINAL CIRCUIT INSPECTION

   1. Check “B” terminal circuit. Refer to Diagnosis Procedure.

   Is the inspection result normal?

   YES>>

   Replace the generator. Refer to Removal and Installation.

   NO>>

   Repair as needed.
