Nissan Sentra B18 (2020-2025) Service Manual: Washer Nozzle
Removal and Installation
REMOVAL
Disconnect
the washer nozzle from the hood by pushing on the nozzle as
shown.
:
Front
Disconnect the washer tube from the washer nozzle.
Remove the washer nozzle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Adjust the nozzle spray pattern. Refer to Adjustment.

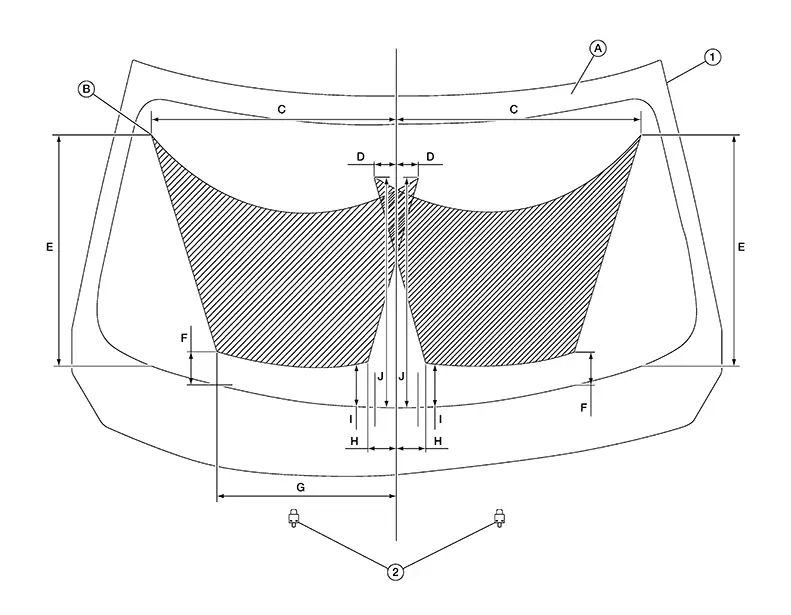

Adjustment
|
1. |
Windshield glass |
2. |
Washer nozzle (LH/RH) |
A. |
Black print |
|
B. |
Spray pattern |
C. |
555.5 mm (21.87 in) |
D. |
51.3 mm (2.02 in) |
|
E. |
514.4 mm (20.25 in) |
F. |
77.3 mm (3.04 in) |
G. |
403.8 mm (15.90 in) |
|
H. |
65.6 mm (2.58 in) |
J. |
96.9 mm (3.81 in) |
K. |
512.7 mm (20.18 in) |
Insert a suitable tool into the nozzle hole (A).
Move
up/down and left/right to adjust the spray position of each nozzle
(1).
