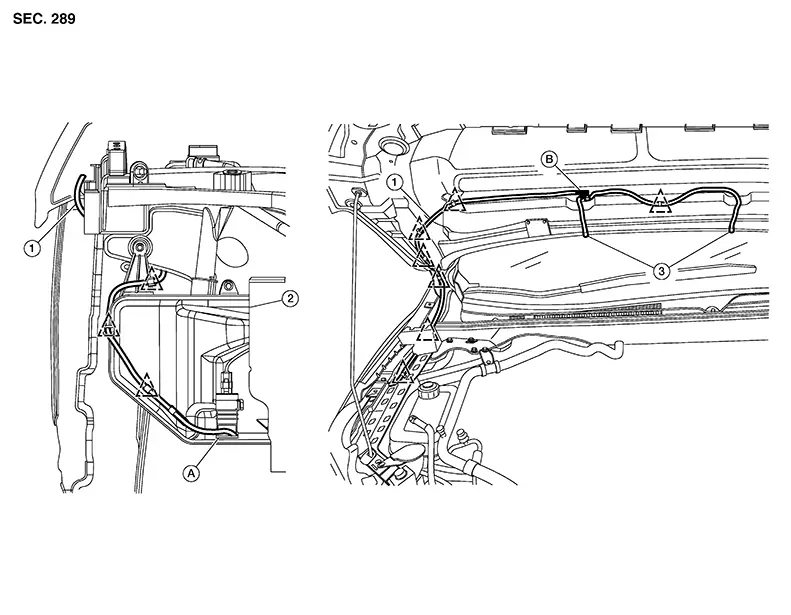

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Washer tube |
2. |
Washer tank |
3. |
Washer nozzle (LH/RH) |
|
A. |
Washer pump (not serviced separately) |
B. |
Check valve |
|

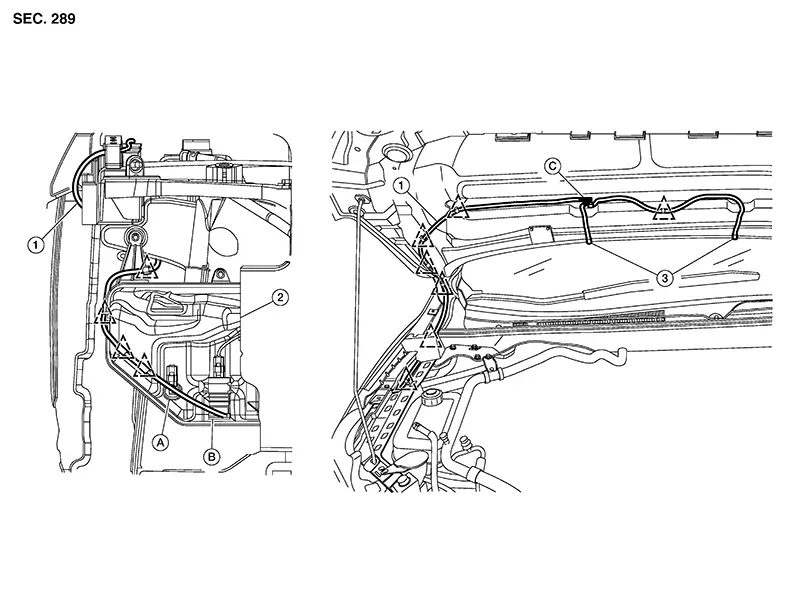

Clip |
|
1. |
Washer tube |
2. |
Washer tank |
3. |
Washer nozzle (LH/RH) |
|
A. |
Washer level switch (not serviced separately) |
B. |
Washer pump (not serviced separately) |
C. |
Check valve |
|
|
Clip |
Washer Nozzle
Removal and Installation
Removal and Installation
REMOVAL
Disconnect
the washer nozzle from the hood by pushing on the nozzle as
shown.
:
Front
Disconnect
the washe ...
