Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
COWL TOP
REMOVAL
Remove front wiper arm (LH/RH). Refer to Removal and Installation.
Remove cowl top side trim cover (LH/RH). Refer to Exploded View.
Remove cowl top clips. Refer to Exploded View.

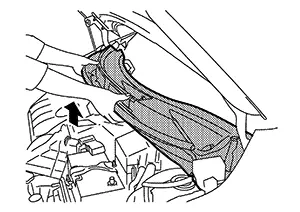

Pull up on
cowl top to release from windshield glass.
CAUTION:
When performing the procedure after removing cowl top, cover the lower end of windshield glass with urethane etc.
Remove cowl top.
Remove the following parts from the cowl top (if necessary):
-
Cowl top seal
-
EPT sealer assembly
-
Cowl top grille cap
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
Clean the joint between the cowl top and the windshield.
-
Replace the EPT sealer assembly when reusing cowl top.
-
Do not wash or expose Nissan Sentra vehicle to a wet environment within 24 hours of installation.
Exploded View
Exploded View
1.
Cowl top side trim cover
(RH)
...
