Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
REMOVAL
Remove the wheel and tire using power tool. Refer to Removal and Installation.
Remove the nut and disconnect the stabilizer connecting rod from the stabilizer bar.
Remove the front suspension member. Refer to Removal and Installation.

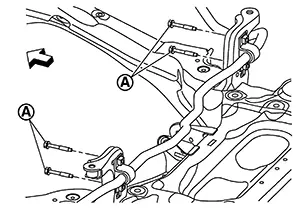

Remove
mounting bolts (A) from stabilizer clamps.
|
|
: Nissan Sentra Vehicle front |
Remove the stabilizer clamps.
Remove the stabilizer bushings.
Remove the stabilizer bar.
Inspect the components. Refer to Inspection.
INSTALLATION
Installation is in the reverse order of removal.
-
Align the stabilizer clamp tab (A) with front suspension member hole (B).
-

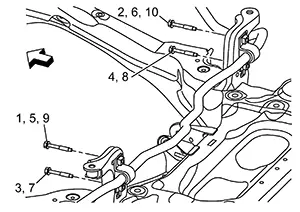

Torque bolts to specification in the sequence shown.
Manual screwing 2 pitch minimum
: 1,2 Temporary tightening
: 3-6
Final tightening (Specified torque)
: 7-10
: Front
-
To connect the stabilizer connecting rod (1), tighten the nut while holding the hexagonal part (A) on the stabilizer connecting rod.
CAUTION:
Do not reuse stabilizer connecting rod nuts.
-
Perform the final tightening of the nuts and bolts under unladen conditions with the tires on level ground.
-
Complete the inspection. Refer to Inspection.
Exploded View
Exploded View
Exploded View
1.
Stabilizer bar
2.
...
Inspection
Inspection
INSPECTION AFTER REMOVAL
Check the stabilizer bar, the stabilizer
connecting rods, the stabilizer bushings, and the stabilizer clamps
for deformation, cracks or damage. Replace ...
