Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

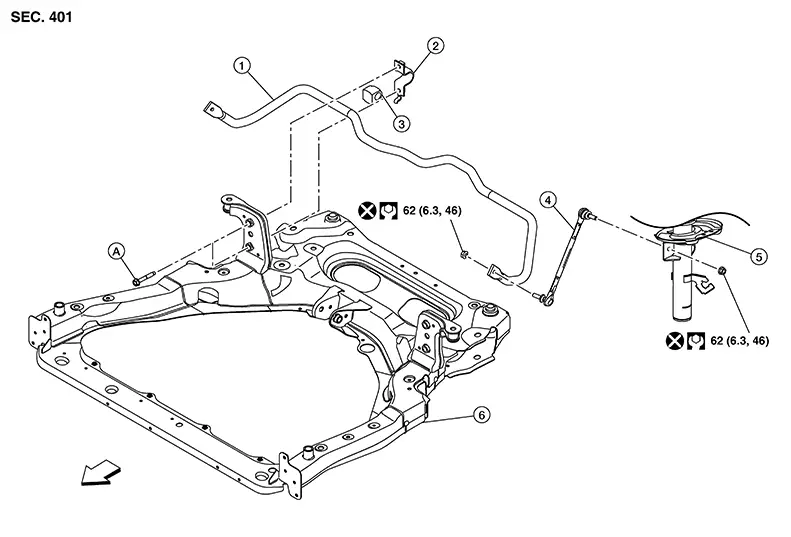

Exploded View
|
1. |
Stabilizer bar |
2. |
Stabilizer clamp |
3. |
Stabilizer bushing |
|
4. |
Stabilizer connecting rod |
5. |
Front strut |
6. |
Front suspension member |
|
A. |
Refer to Removal and Installation. |
|
Front |
Front Stabilizer
...
Removal and Installation
Removal and Installation
REMOVAL
Remove the
wheel and tire using power tool. Refer to Removal and Installation.
Remove the
nut and disconnect the stabilizer connecting rod from the
...
