Nissan Sentra B18 (2020-2025) Service Manual: Rear Door Speaker

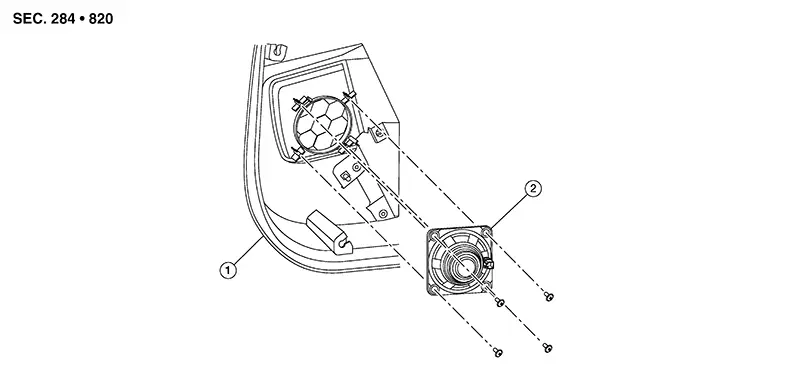

Exploded View
|
1. |
Rear door finisher |
2. |
Rear door speaker |
Removal and Installation
REMOVAL
Remove rear door finisher. Refer to Removal and Installation.
Remove bolts and remove rear door speaker.
INSTALLATION
Installation is in the reverse order of removal.
Front Door Speaker
Exploded View
Exploded View
1.
Front door speaker
...
