Nissan Sentra B18 (2020-2025) Service Manual: Primary Speed Sensor

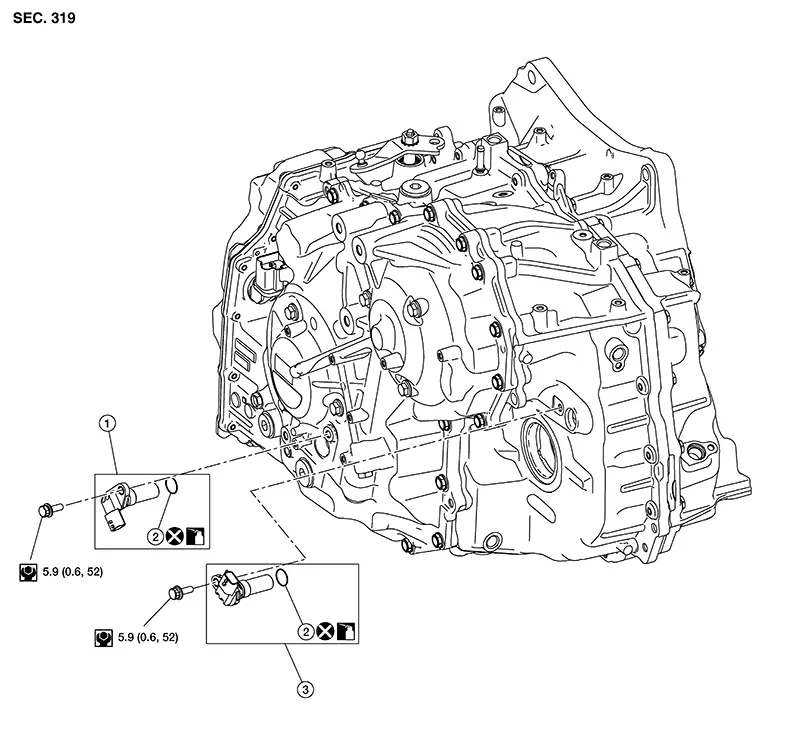

Exploded View
|
1. |
Primary speed sensor |
2. |
O-ring |
3. |
Secondary speed sensor |
Removal and Installation
REMOVAL
Place ignition in OFF position.
Remove front wheel and tire (LH). Refer to Removal and Installation.
Remove fender protector (LH). Refer to Removal and Installation.
Disconnect the harness connector from the primary speed sensor.
Remove the bolt and remove primary speed sensor from transaxle assembly.
Remove O-ring (1) from primary speed
sensor.
CAUTION:
Do not reuse O-ring.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
Do not reuse O-ring.
-
Apply CVT fluid to the O-ring.
Inspection and Adjustment
INSPECTION AFTER INSTALLATION
Start the engine and check visually that there is no leakage of CVT fluid.
ADJUSTMENT AFTER INSTALLATION
If CVT fluid leaks during work, adjust the CVT fluid level. Refer to Adjustment.
