Nissan Sentra B18 (2020-2025) Service Manual: Power Seat System

Nissan Sentra B18 (2020-2025) Service Manual / Body Interior / Seat :: System Description / Component Parts / Power Seat System

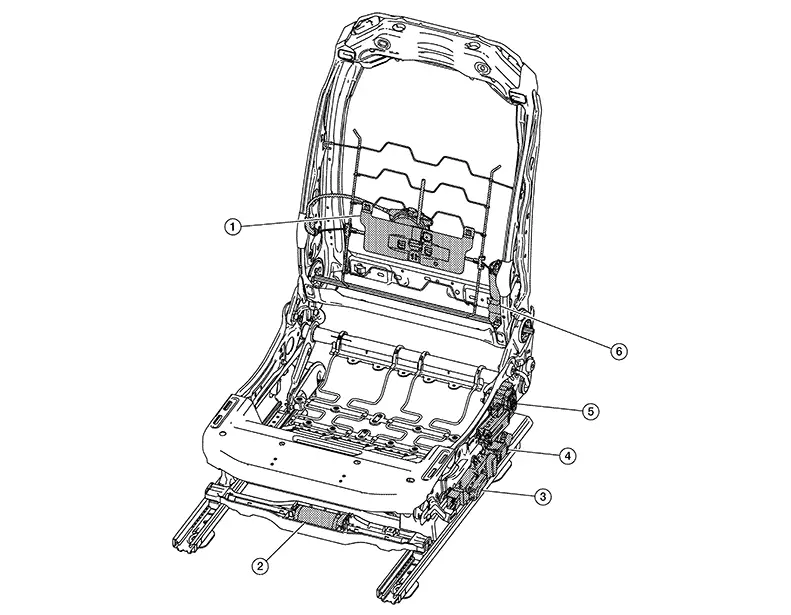

Component Parts Location

Component Parts Location

No.	Component	Function
1.	Lumbar support motor	Refer to Lumbar Support Motor.
2.	Sliding motor LH	Refer to Sliding Motor LH.
3.	Power seat switch LH	Refer to Power Seat Switch LH.
4.	Lumbar support switch	Refer to Lumbar Support Switch.
5.	Lifting motor LH	Refer to Lifting Motor LH.
6.	Reclining motor LH	Refer to Reclining Motor LH.

Sliding Motor Lh

Sliding Motor LH

The sliding motor LH is installed to the seat frame assembly LH.
The seat is moved forward/backward by changing the rotation direction of the sliding motor LH.

Reclining Motor Lh

Reclining Motor LH

The reclining motor LH is installed to the seat back assembly LH.
The seatback is reclined forward/backward by changing the rotation direction of reclining motor LH.

Lifting Motor Lh

Lifting Motor LH

The lifting motor LH is installed to seat frame assembly LH.
The seat is moved upward/downward by changing the rotation direction of lifting motor LH.

Lumbar Support Motor

Lumbar Support Motor

The lumbar support motor is installed on the seat back assembly LH.
With power supplied to the lumbar support switch, the lumbar support motor operates and makes forward and backward position adjustment of the seat back support possible.

Power Seat Switch Lh

Power Seat Switch LH

The power seat switch LH is installed on seat cushion outer finisher LH.
Built-in reclining switch, sliding switch and lifting switch, controls the power supplied to each power seat motor.

Lumbar Support Switch

Lumbar Support Switch

The lumbar support switch is installed on seat cushion outer finisher LH.
The lumbar support switch controls the power supplied to the lumbar support motor.
