Nissan Sentra B18 (2020-2025) Owner's Manual: I-FCW system operation

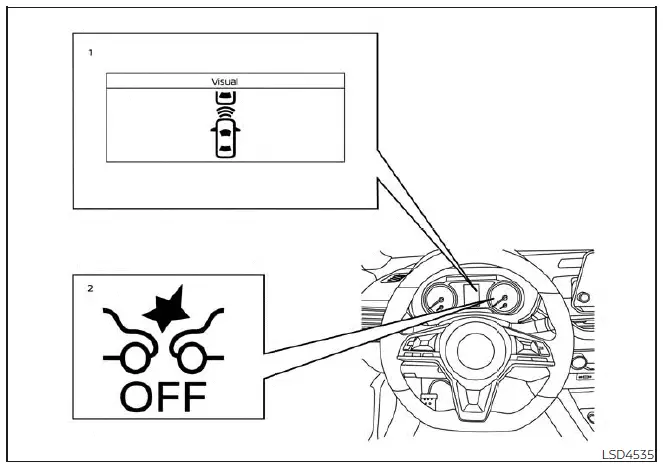

For vehicles with the 7 inch meter display

1. Vehicle ahead detection indicator
2. AEB with Pedestrian Detection system warning light

For vehicles with the 4.2 inch meter display

The I-FCW system operates when the Nissan Sentra is traveling at speeds above approximately 3 mph (5 km/h).

When a potential risk of a forward collision is detected, the I-FCW system warns the driver by flashing the vehicle-ahead detection indicator and sounding an audible alert to prompt timely driver response.

Turning the I-FCW system on/off

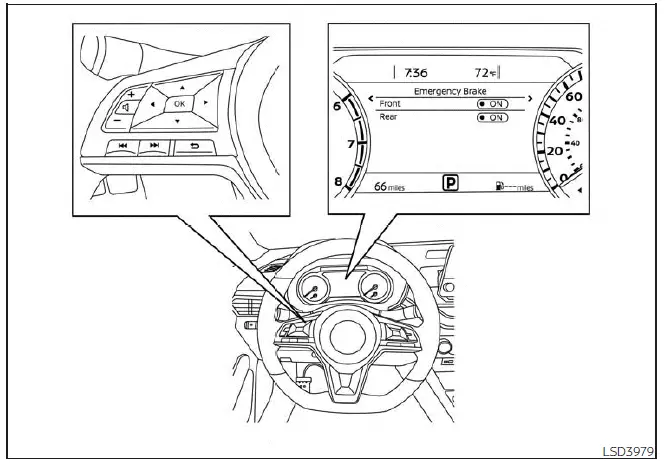

For vehicles with the 7 inch meter display

Follow the steps below to turn the Intelligent Forward Collision Warning system ON or OFF on your Nissan Sentra.

1. Press the button until “Settings” appears in the vehicle information display.

Use the button to select “Driver Assistance,” then press the OK button.

2. Select “Emergency Brake” and press the OK button.

3. Select “Front” and press the OK button to enable or disable the system.

When the I-FCW system is turned off, the AEB with Pedestrian Detection system warning light will illuminate to indicate system status.

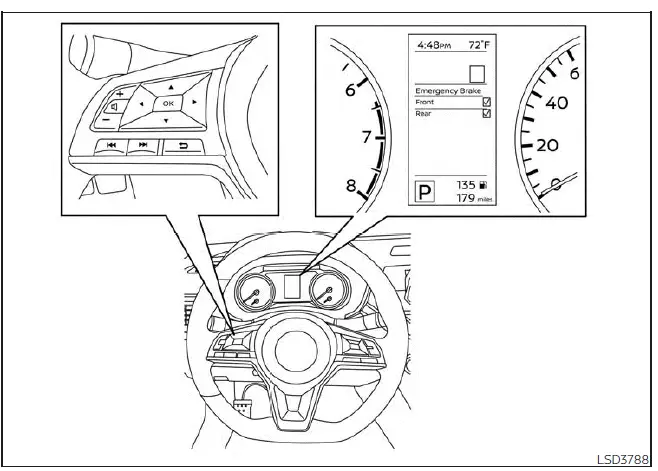

For vehicles with the 4.2 inch meter display

NOTE:

• The I-FCW system will automatically turn back on whenever the engine is restarted.
• The I-FCW system is integrated into the AEB with Pedestrian Detection system. There is no separate menu option for I-FCW. When the AEB with Pedestrian Detection system is turned off, the I-FCW system is also disabled.
