Nissan Sentra B18 (2020-2025) Service Manual: How to Follow Test Groups in Trouble Diagnosis
-

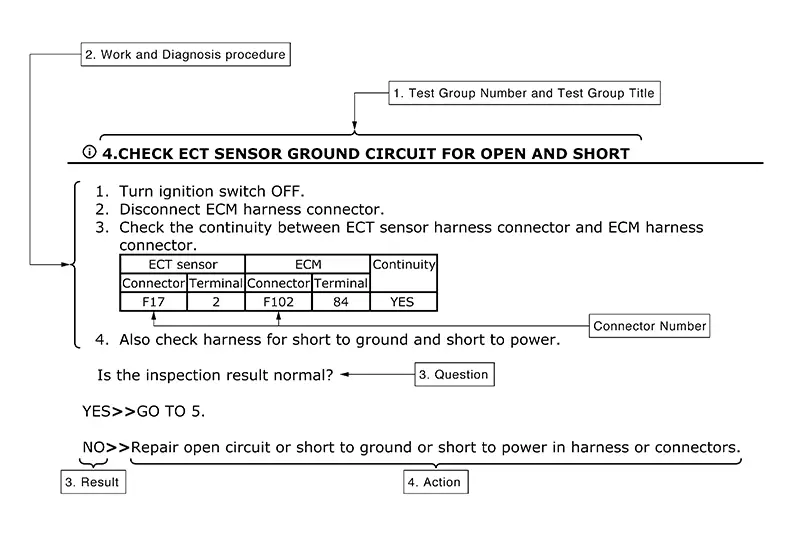

Test group number and test group title
-
Test group number and test group title are shown in the upper portion of each test group.
-
-
Work and diagnosis procedure
-
Start a trouble diagnosis using procedures indicated in enclosed test groups.
-
-
Questions and results
-
Questions and required results are indicated in test group.
-
-
Action
-
Next action for each test group is indicated based on result of each question.
-
Description
Description
Note:
Trouble diagnoses indicate work procedures
required to diagnose problems effectively. Observe the following
instructions before diagnosing.
Before performi ...
Key to Symbols Signifying Measurements or Procedures
Key to Symbols Signifying Measurements or Procedures
...
