Nissan Sentra B18 (2020-2025) Service Manual: Front Fog Lamp

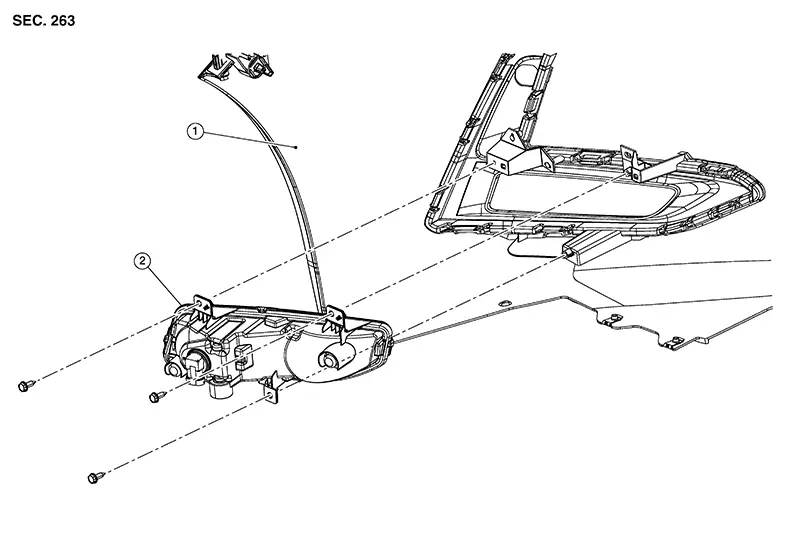

Exploded View
|
1. |
Front bumper fascia |
2. |
Front fog lamp |
Removal and Installation
Removal
Position the fender protector aside. Refer to Removal and Installation — Front Fender Protector.
Disconnect the harness connector from the front fog lamp.
Remove the screws and the front fog lamp.
Installation
Installation is in the reverse order of removal.
Bulb Replacement
The front fog lamp bulb is LED and is serviced as an assembly to the front fog lamp. Refer to Removal and Installation.
Front Combination Lamp
Exploded View
Exploded View
1.
Front combination lamp
...
Door Mirror Turn Signal Lamp
Exploded View
Exploded View
1.
Door mirror assembly
...
