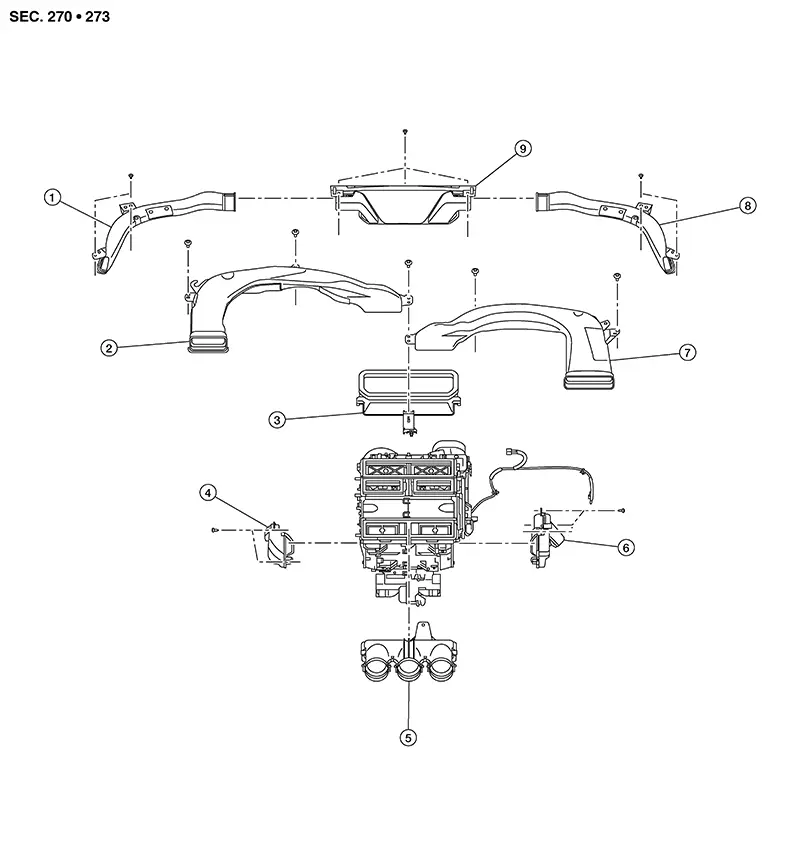

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View - Without Rear Ducts
|
1. |
Side defroster duct (LH) |
2. |
Side Ventilator duct (LH) |
3. |
Adapter duct |
|
4. |
Front floor duct (LH) |
5. |
Center ventilator duct |
6. |
Front floor duct (RH) |
|
7. |
Side ventilator duct (RH) |
8. |
Side defroster duct (RH) |
9. |
Defroster nozzle |
Exploded View - With Rear Ducts
Exploded View - With Rear Ducts
1.
Side defroster duct (LH)
...
Defroster Nozzle
Removal and Installation
Removal and Installation
REMOVAL
Remove
instrument panel assembly. Refer to Removal and Installation.
Remove
defroster nozzle screws (A), and remove defros ...
