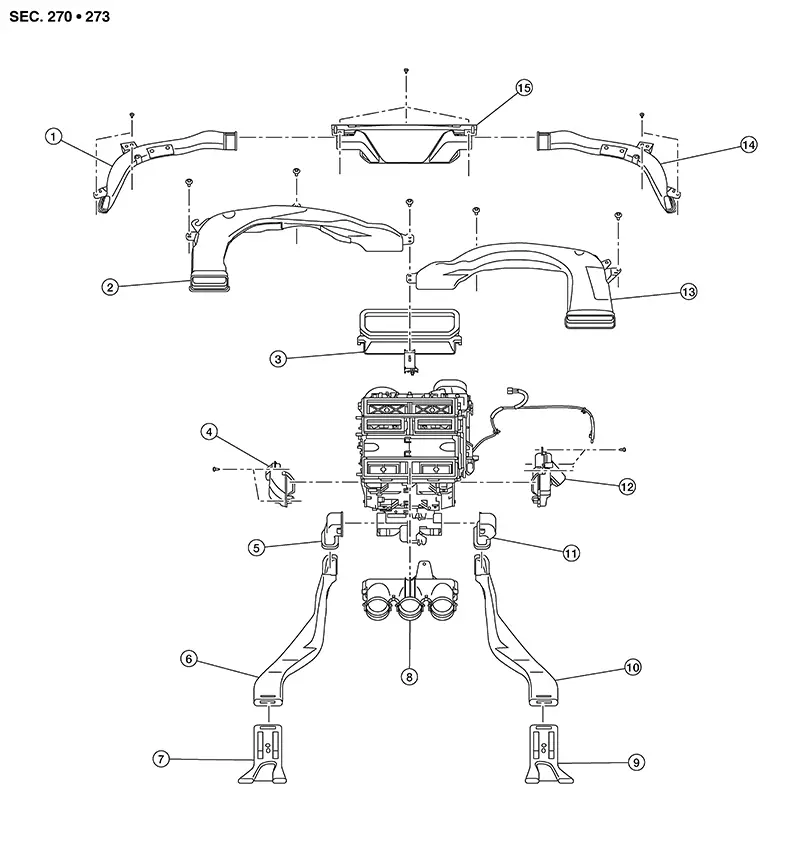

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View - With Rear Ducts
|
1. |
Side defroster duct (LH) |
2. |
Side ventilator duct (LH) |
3. |
Adapter duct |
|
4. |
Front floor duct (LH) |
5. |
Rear floor connecting duct (LH) |
6. |
Rear floor duct (LH) |
|
7. |
Rear floor duct nozzle (LH) |
8. |
Center ventilator duct |
9. |
Rear floor duct nozzle (RH) |
|
10. |
Rear floor duct (RH) |
11. |
Rear floor connecting duct (RH) |
12. |
Front floor duct (RH) |
|
13. |
Side ventilator duct (RH) |
14. |
Side defroster duct (RH) |
15. |
Defroster nozzle |
Exploded View - Without Rear Ducts
Exploded View - Without Rear Ducts
1.
Side defroster duct (LH)
...
