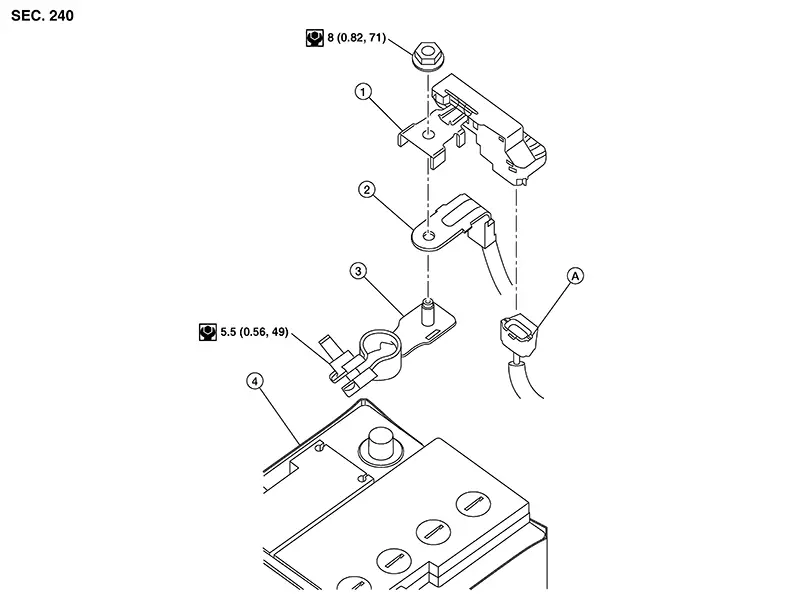

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Battery current sensor |
2. |
Negative battery cable |
3. |
Negative battery terminal |
|
4. |
Battery |
A. |
Current sensor harness connector |
Removal and Installation
Removal and Installation
REMOVAL
Disconnect
battery. Refer to Battery Disconnect.
CAUTION:
To prevent damage to the parts, disconnect the
battery negative terminal first.
...
