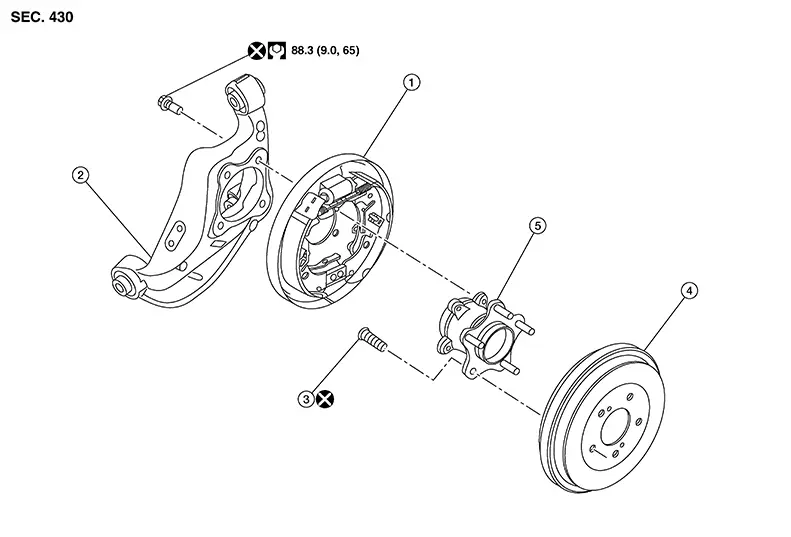

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View — with Drum Brake
|
1. |
Brake assembly |
2. |
Rear Knuckle |
3. |
Wheel stud |
|
4. |
Brake Drum |
5. |
Wheel hub assembly (Bearing-integrated type) |
Rear Wheel Hub
...
Removal and Installation — with Drum Brake
Removal and
Installation — With Drum Brake
REMOVAL
Remove rear brake drum. Refer to Removal and Installation.
CAUTION:
Do not depress brake pedal while rear brake drum
...
