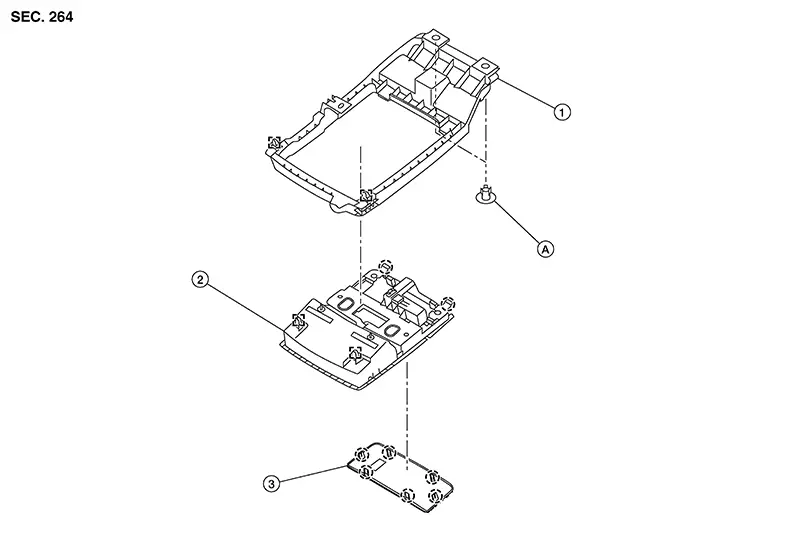

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Front room/map lamp assembly bracket |
2. |
Front room/map lamp assembly |
3. |
Switch finisher |
|
A. |
Clip |
|
Pawl |
|
Metal clip |
Removal and Installation
Removal and Installation
REMOVAL
Lower front
edge of map lamp (1) down from the headlining by releasing the
metal clips, then slide forward to clear pawls at rear.
: Metal clip
...
