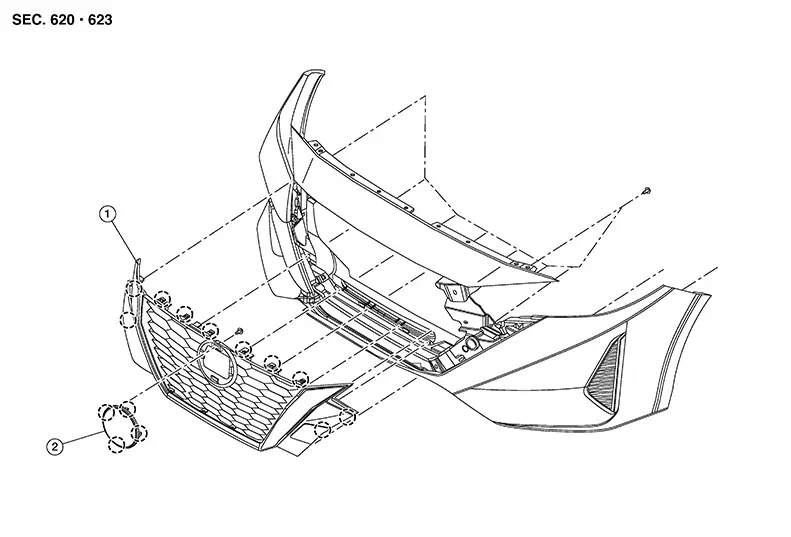

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Front grille |
2. |
Emblem |
3. |
Front bumper fascia |
|
|
Pawl |
Front Grille
...
Removal and Installation
Removal and
Installation
REMOVAL
Remove front bumper fascia. Refer
to Removal and Installation.
Remove screws (A) and clips (B).
Release pawls and pull front grille
forward to ...
