Nissan Sentra B18 (2020-2025) Service Manual: Removal and Installation
REMOVAL
Remove front bumper fascia. Refer to Removal and Installation.

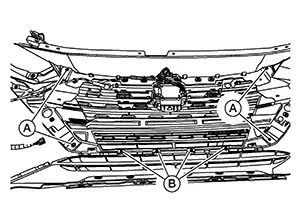

Remove screws (A) and clips (B).

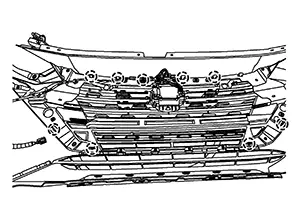

Release pawls and pull front grille
forward to remove from front bumper fascia.
: Pawl
Remove front emblem (if necessary).
INSTALLATION
Installation is in the reverse order of removal.
Exploded View
Exploded View
1.
Front grille
2.
...
