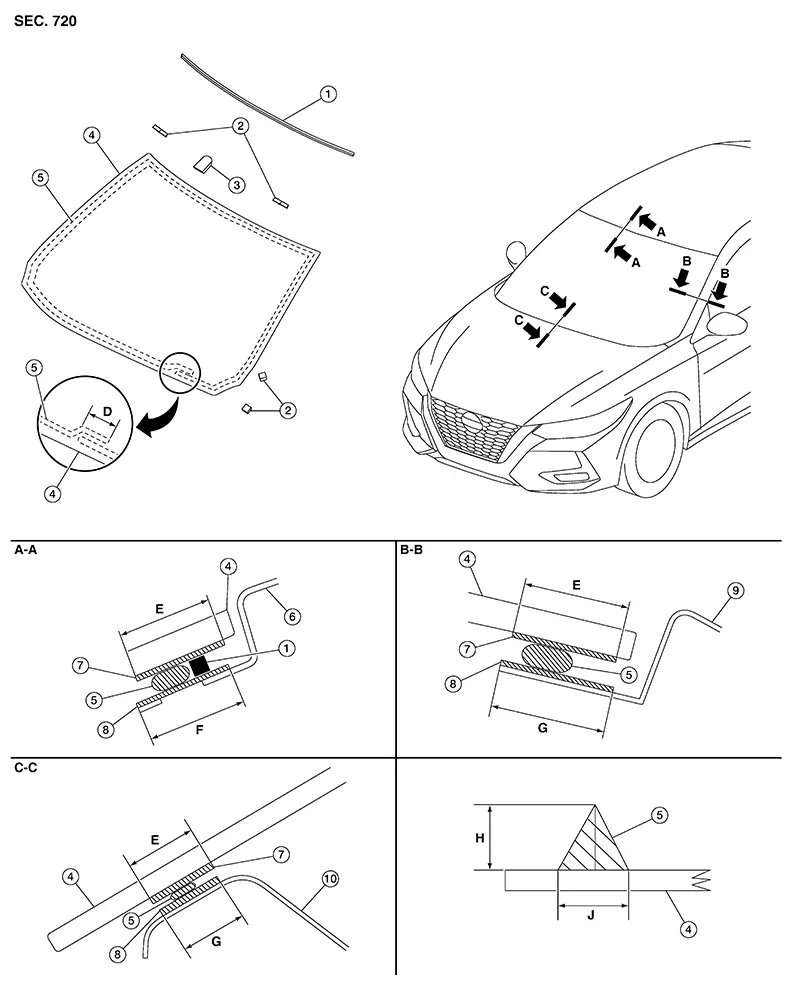

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Dam sealant rubber (upper) |
2. |
Spacer |
3. |
Inside mirror base |
|
4. |
Windshield glass |
5. |
Adhesive |
6. |
Roof panel |
|
7. |
Glass primer |
8. |
Body primer |
9. |
Body side outer panel |
|
10. |
Cowl top cover |
D. |
30 mm (1.2 in) |
E. |
16.2 mm (0.63 in) |
|
F. |
15.4 mm (0.60 in) |
G. |
13.0 mm (0.51 in) |
H. |
14 mm ± 1.0 mm (0.55 ± 0.03) |
|
J. |
8.0 mm ± 1.0 mm (0.31 ± 0.03) |
Windshield Glass
...
Removal and Installation
Removal and Installation
REMOVAL
Remove
front pillar finisher (LH/RH). Refer to Removal and Installation.
Remove
front camera unit. Refer to Removal and Installation.
Remove
i ...
