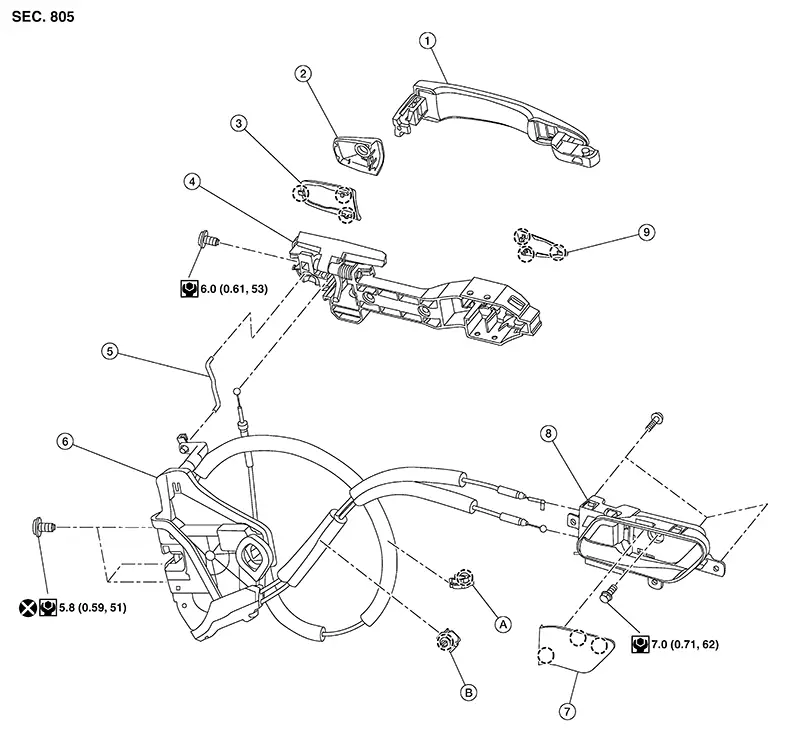

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1 . |
Outside handle |
2. |
Door lock cylinder (LH only) |
3. |
Rear gasket |
|
4. |
Outside handle bracket |
5. |
Door key cylinder rod (LH only) |
6. |
Front door lock |
|
7. |
Inside handle escutcheon |
8. |
Inside handle |
9. |
Front gasket |
 |
Pawl |
A. |
Clip |
B. |
Clip |
Front Door Lock
...
Door Lock
Removal and Installation
Removal and
Installation
REMOVAL
Remove outside handle. Refer to Removal and Installation.
Remove bolts and front door rear
run. Refer to Exploded View.
...
