Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

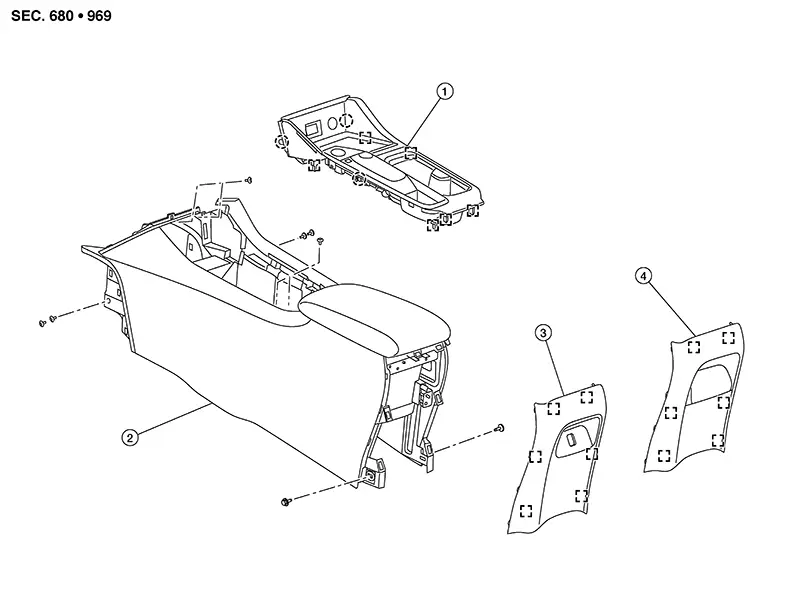

CVT MODELS
|
1. |
Shift selector finisher (CVT) |
2. |
Center console |
3. |
Center console rear finisher (with rear USB charge port) |
|
4. |
Center console rear finisher (without rear USB charge port) |
|
Pawl |
|
Metal clip |

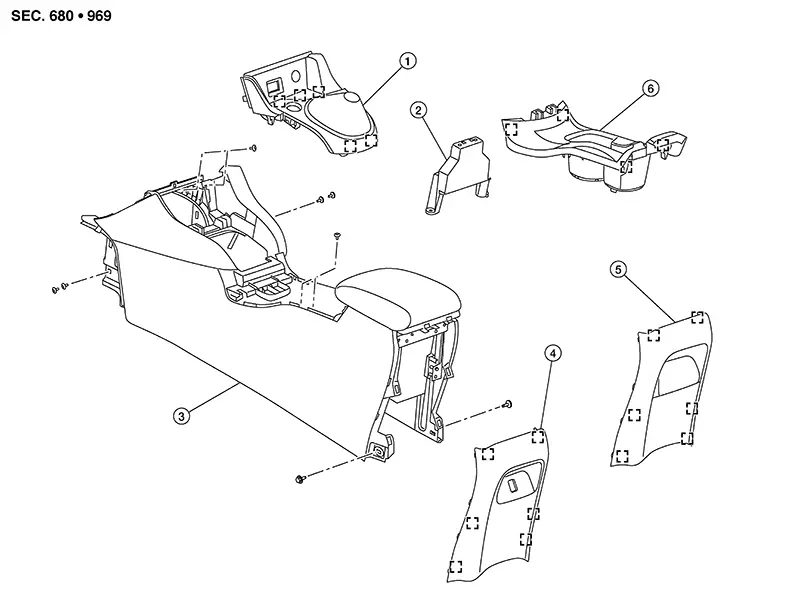

M/T MODELS
|
1. |
Shift selector finisher (with Manual transmission) |
2. |
Center console support bracket |
3. |
Center console |
|
4. |
Center console rear finisher (with USB charge port) |
5. |
Center console rear finisher (without USB charge port) |
6. |
Center console cup holder finisher |
|
|
Pawl |
|
Metal clip |
Removal and Installation
Removal and
Installation
CVT MODELS
REMOVAL
Using a suitable tool, release clips
and remove the center console side finishers [1 (LH/RH)].
Note:
LH shown; RH similar
: Clip
...
