DTC Logic
DTC DETECTION LOGIC
DTC | CONSULT screen terms (Trouble diagnosis content) | DTC detection condition | Possible causes |
P0962 | PRESSURE CONTROL SOLENOID A (Pressure Control Solenoid A Control Circuit Low) | The line pressure solenoid valve current is 200
mA or less continuously for 200 msec or more
under the following diagnosis conditions: Diagnosis conditions
|
|
DTC CONFIRMATION PROCEDURE
1.PREPARATION BEFORE WORK
If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.
>> GO TO 2.
2.CHECK DTC DETECTION
Is “P0962” detected? YES >> Go to TM-201, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis Procedure
1.CHECK CIRCUIT BETWEEN TCM AND CVT UNIT
Is the inspection
result normal?
YES >> GO TO 2.
NO >> Repair or replace malfunctioning parts.
2.CHECK LINE PRESSURE SOLENOID VALVE
Check line pressure solenoid valve. Refer to TM-201, "Component Inspection".
Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-39, "Intermittent Incident".
NO >> Repair or replace malfunctioning parts.
Component Inspection
1.CHECK LINE PRESSURE SOLENOID VALVE

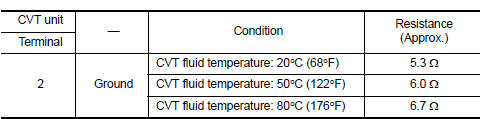

Check resistance between CVT unit connector terminal and ground.
Is the inspection
result normal?
YES >> INSPECTION END
NO >> There is a malfunction of line pressure solenoid valve. Replace transaxle assembly. Refer to TM- 283, "Removal and Installation".
