Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

Exploded View

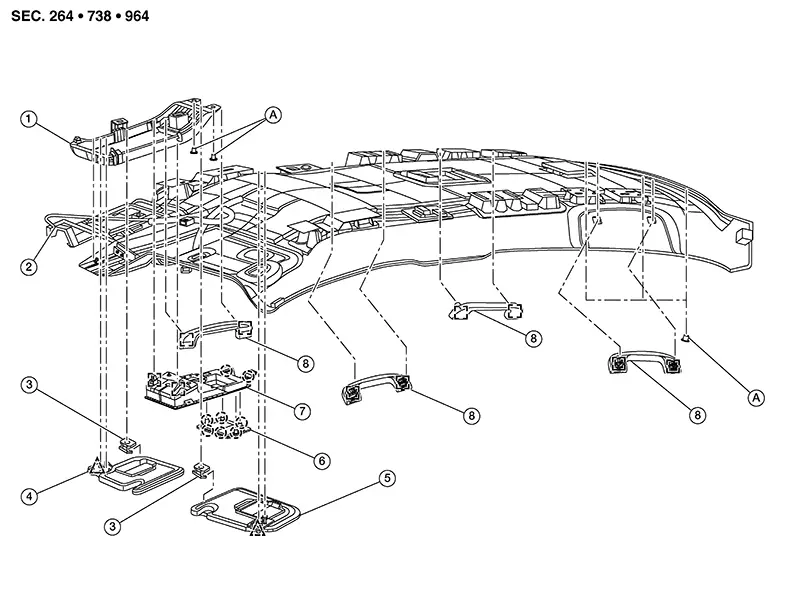

STANDARD ROOF

1.

Front room/map lamp assembly bracket

2.

Headlining

3.

Sun visor holder

4.

Sun visor (RH)

5.

Sun visor (LH)

6.

Switch finisher

7.

Front room/map lamp assembly

8.

Assist grip

A.

Clip

Clip

Pawl

Metal clip

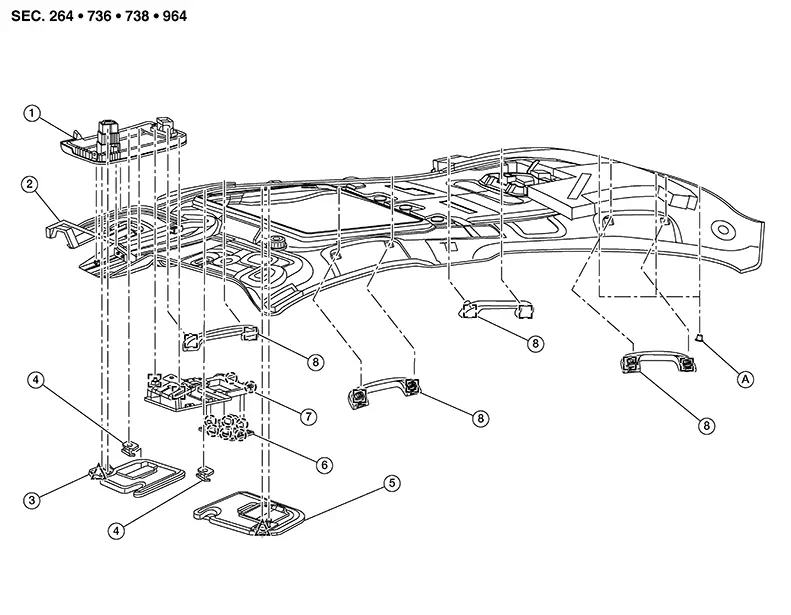

MOONROOF

1.

Map lamp bracket

2.

Headlining

3.

Sun visor (RH)

4.

Sun visor holder

5.

Sun visor (LH)

6.

Switch finisher

7.

Front room/map lamp assembly

8.

Assist grip

A.

Clip

Clip

Pawl

Metal clip

Headlining
...

Removal and Installation
Removal and Installation REMOVAL Remove front pillar finishers (LH/RH). Refer to Removal and Installation. Remove front seat assemblies. Refer to the following. R ...
