Removal and Installation

REMOVAL

Remove front pillar finishers (LH/RH). Refer to Removal and Installation.

Remove front seat assemblies. Refer to the following.

• Removal and Installation - Seat Assembly (Driver Seat).

• Removal and Installation - Seat Assembly (Passenger Seat).

Remove center pillar upper finishers (LH/RH). Refer to Removal and Installation.

Remove rear pillar finishers (LH/RH). Refer to Removal and Installation — Rear Pillar Upper Finisher.

Remove all assist grips. Remove assist grip cap (3).

: Pawl

Remove front room/map lamp assembly. Refer to Removal and Installation.

Using a suitable tool, release clip and remove sun visors [1 (LH/RH)].

: Clip

Remove sun visor holders (LH/RH). Rotate 90° and remove as shown.

Using a suitable tool, remove headlining clips. Refer to Exploded View.

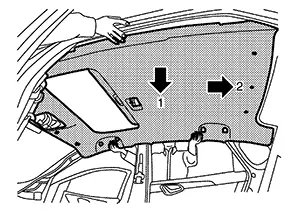

Disconnect harness connectors and remove headlining from roof panel as shown. Adjust the position of headlining so that it can be removed through rear driver side door.

CAUTION:

Do not bend headlining when removing.

Headlining equipped with moonroof shown, standard headlining similar.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing headlining, start by installing both sun visor holders and the headlining clips in order to keep the headlining in position.

• Do not bend headlining when installing.

• Be careful that the surface is not wrinkled when installing.

• When installing assist grip, install metal clip (1) to assist grip clip (2), then install to the body panel.
