Nissan Sentra B18 (2020-2025) Service Manual: Exploded View

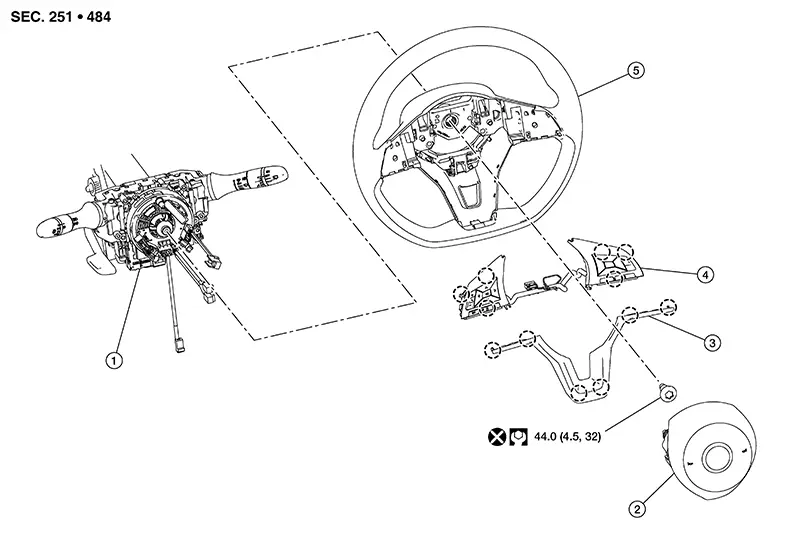

Exploded View

1.

Steering column assembly

2.

Driver air bag module

3.

Finisher

4.

Steering switches

5.

Steering wheel

Pawl

Steering Wheel
...

Removal and Installation
Removal and Installation REMOVAL Set the front wheels and tires to the straight-ahead position. Remove driver air bag module. Refer to Removal and Installation. Disconnect ste ...
