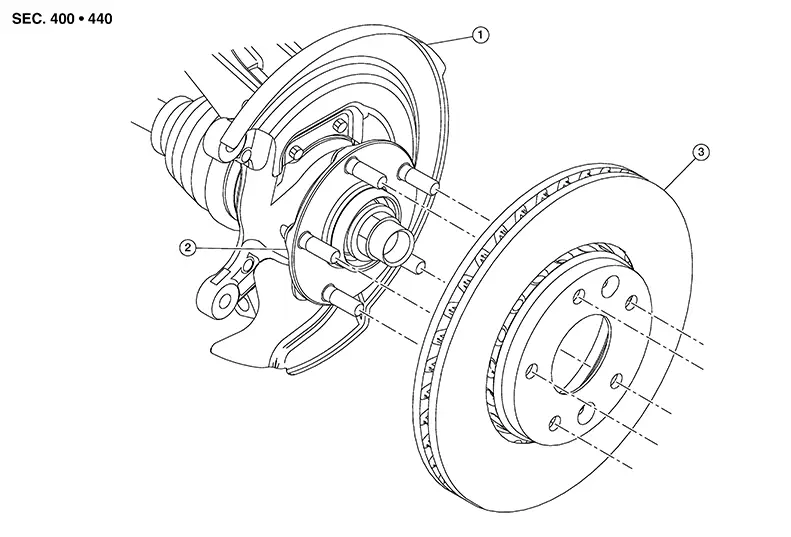

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Splash guard |
2. |
Wheel hub |
3. |
Disc brake rotor |
Removal and Installation
Removal and Installation
REMOVAL
Observe the
brake fluid level in the master cylinder reservoir tank. Partially
drain brake fluid if necessary. Refer to Draining.
Remove the
front ...
