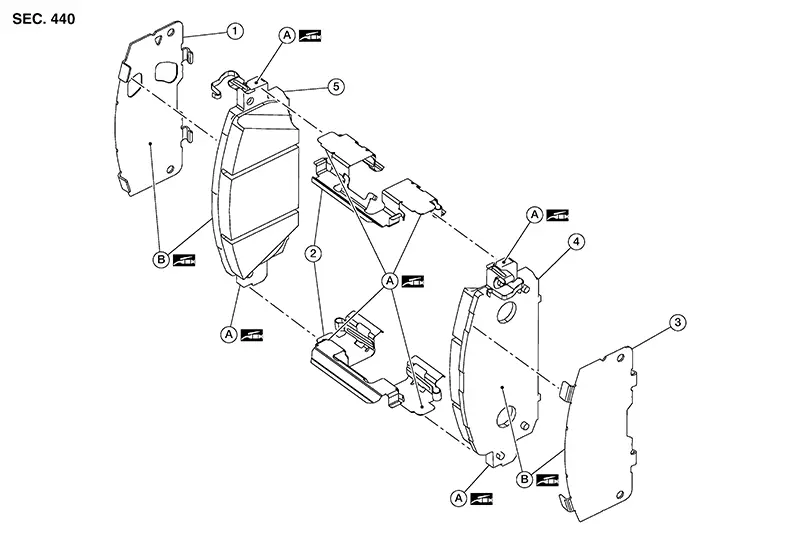

Nissan Sentra B18 (2020-2025) Service Manual: Exploded View
|
1. |
Inner shim |
2. |
Pad retainer |
3. |
Outer shim |
|
4. |
Outer pad |
5. |
Inner pad |
A. |
Molykote® 7439 grease |
|
B. |
Molykote® AS-880N grease |
Front Brake Pad
...
Removal and Installation
Removal and Installation
Warning:
Clean dust on the brake caliper and the brake
pads using a vacuum dust collector to minimize the hazards of
airborne particles or other material. ...
